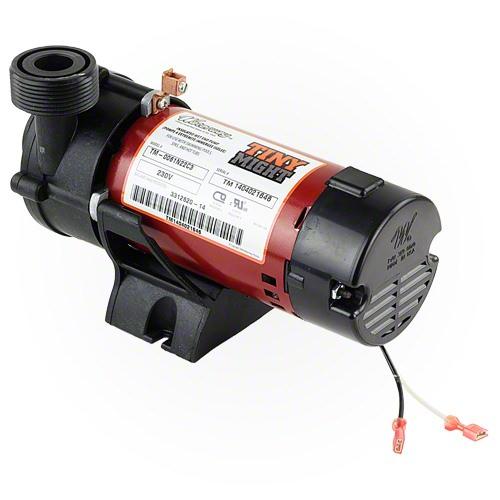

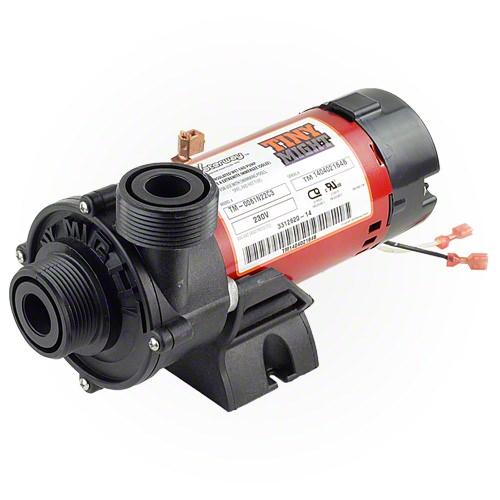

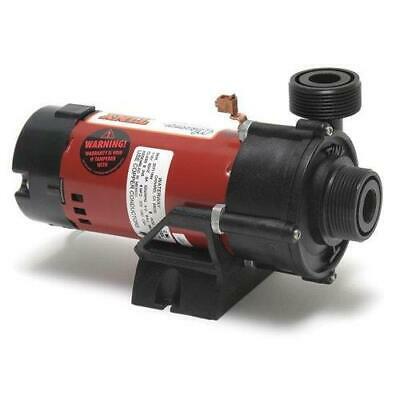

Waterway Tiny Might 3312620-14 circulation pump – 230 V

The Waterway Tiny Might 3312620-14 is a compact 230 V circulation pump for compatible spas. Its 1/16 HP motor and 1-inch union connections are suitable for a circuit dedicated to filtration and heating.

Technical specifications

• Part number: 3312620-14
• Power supply: 230 V / 50–60 Hz
• Power: 1/16 HP
• Rated current: 0,4 A
• Inlet and outlet: 1-inch union connections
• Side discharge
• Rotatable wet end

A pump dedicated to circulation

The side outlet and rotatable wet end make it easy to adapt the pump to compatible plumbing. This version uses 1-inch unions; part number 3312620-19 with barbed fittings is a different configuration.

Compatibility and replacement

Compare part number 3312620-14, the 230 V voltage, and the unions with your existing pump. Nominal plumbing dimensions do not correspond to the outside diameter of the threads. Also check the wet-end orientation and mounting points.

Installation and commissioning

Have a qualified technician handle the replacement and electrical connection. They should check the voltage specified for the spa, ensure the connections are watertight, and prime the circuit before restarting the pump. Do not run the pump dry.

Need help choosing?

To confirm the correct part, provide the spa model, year, and serial number, along with a photo of the current pump's label. Compare the voltage, connections, orientation, and mounting points; include part number 3312620-14.

Choose a compatible circulation pump

Compare voltages and connections in our spa circulation pump collection. To also compare jet pumps, see our spa pump guide.

In the box

One Waterway Tiny Might 3312620-14 pump. Check which unions, seals, and connections are required for your installation.
