Spa and circulation pumps

Find a replacement pump for your spa jets, filtration, or circulation. This collection includes LX, Waterway, Laing, Gecko, and Balboa models, as well as options for Bullfrog, Freeflow, and Hot Spring spas. The right choice depends on your setup and the model number of your current pump.

Jet pump or circulation pump?

A jet pump supplies flow to the massage jets. Depending on the spa, a two-speed pump may also handle filtration and heating cycles at low speed. A dedicated circulation pump supplies a separate circuit, often used for filtration and heating. These two types of pumps are not interchangeable based on horsepower alone.

How to choose your spa pump

1. Note the model number and motor nameplate. Compare the listed voltage, frequency, number of speeds, and current ratings.

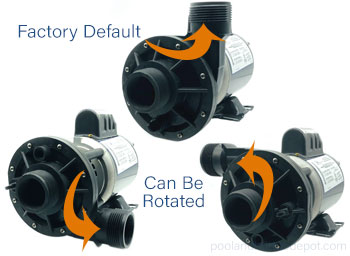

2. Check the plumbing and installation. Compare the motor frame, mounting points, outlet orientation, dimensions, and electrical connector.

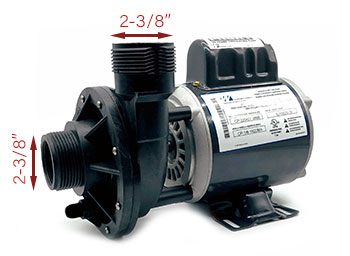

3. Confirm the fittings and included parts. The ¾ in, 1 in, 1½ in, 2 in, or 2½ in sizes are nominal. Check the connection type, threads, and whether unions, gaskets, and the cord are included.

Horsepower alone is not enough to choose a replacement pump: power ratings may be displayed using different methods. Use the model number, nameplate, and spa requirements to confirm your choice.

Some configurations to compare

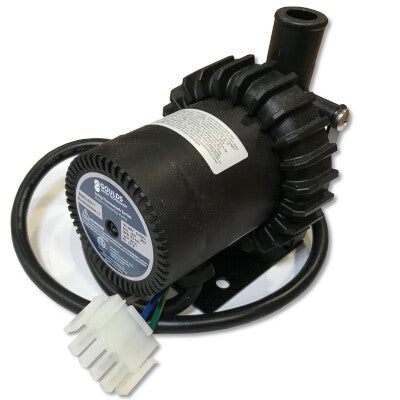

• Laing E10 6050U0015 — 115 V and 6050U0016 — 230 V: two different voltage versions with ¾ in barbed fittings.
• LX 48WTC0153C-1A — circulation, 2 in fittings: configurable for 115 V or 230 V, depending on the installation.
• Waterway Executive 56 ME-40226-20: two-speed jet pump with 2 in fittings.

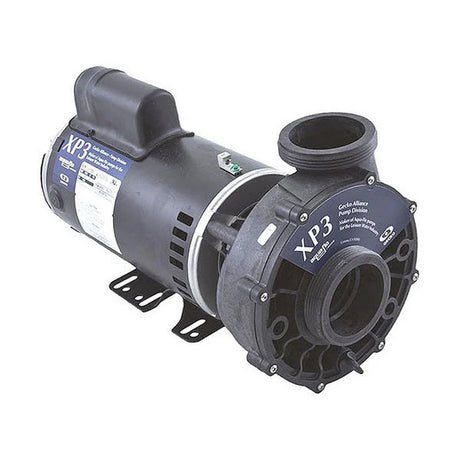

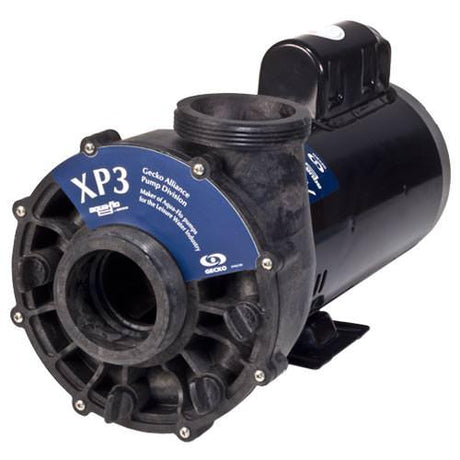

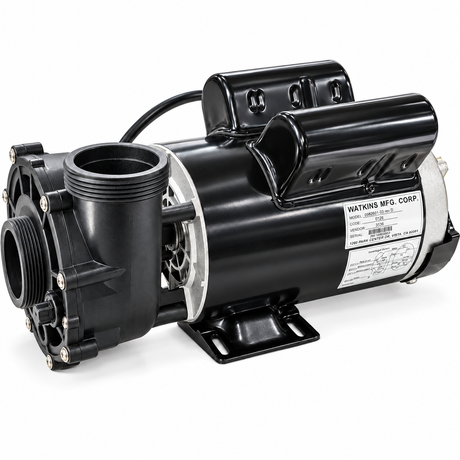

• Bullfrog Flo-Master XP3 65-02374 and Hot Spring Wavemaster 73023: confirm these model numbers against the spa model and serial number.

Prepare for replacement

Send Piscine Hippocampe the spa model, year, and serial number, along with a clear photo of the pump nameplate, fittings, and connector. Confirm compatibility before ordering, and have a qualified technician handle the electrical installation.
