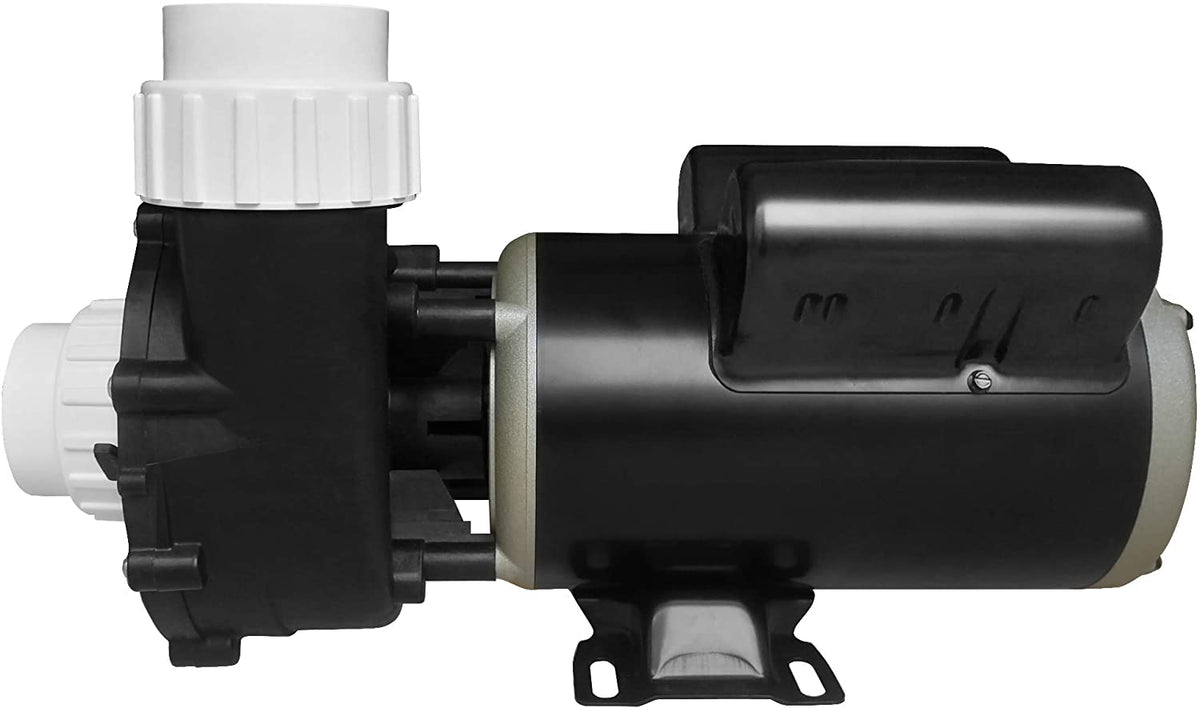

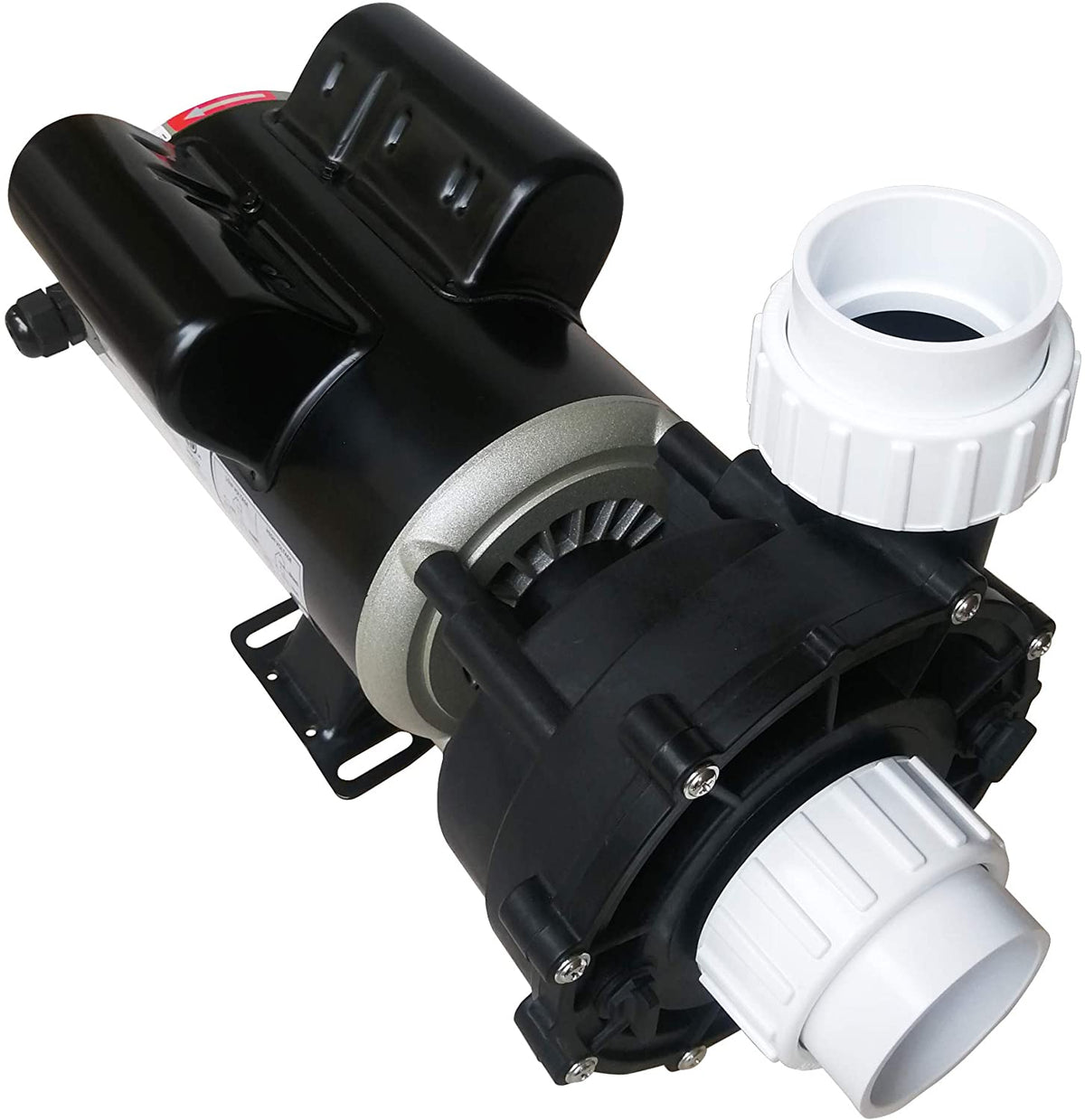

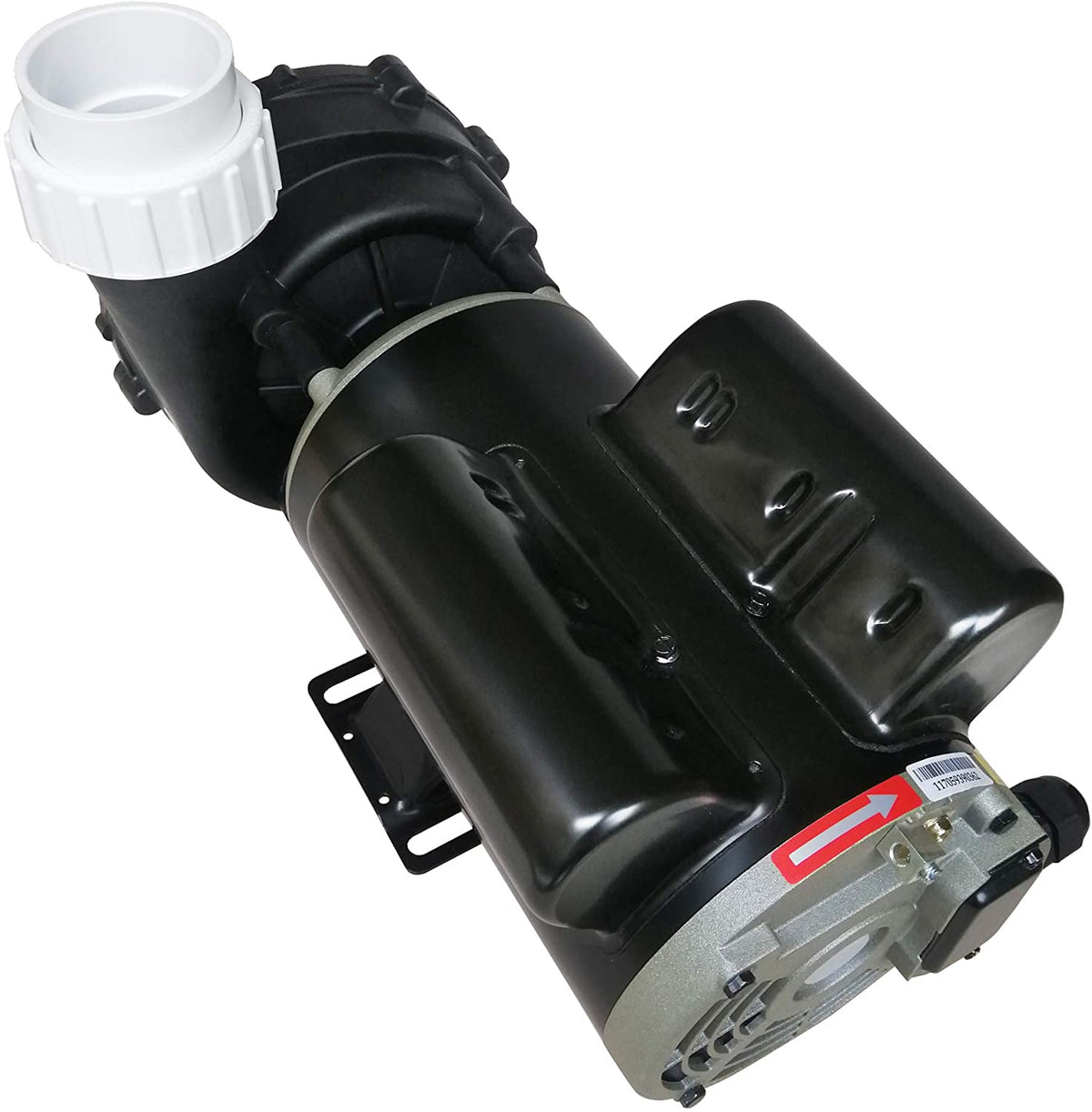

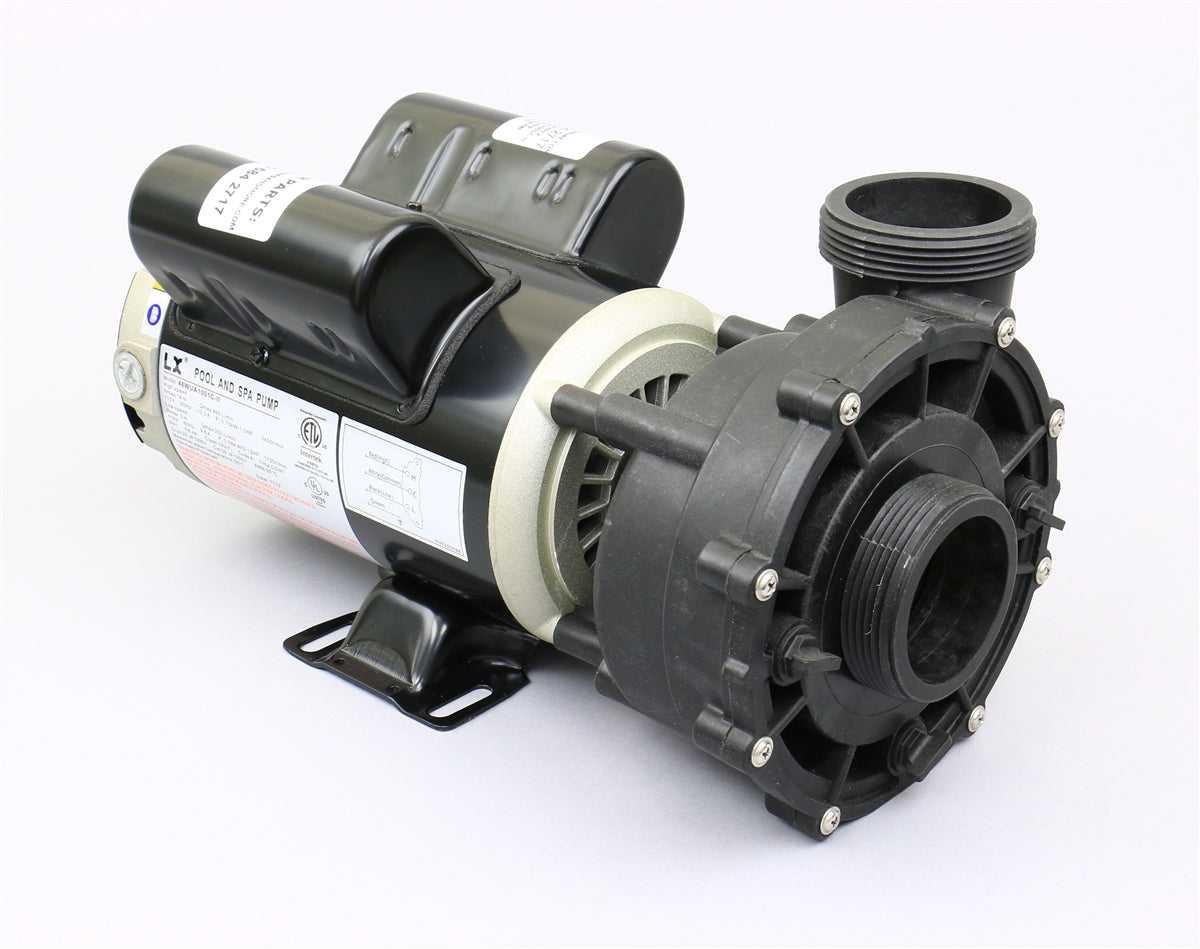

LX 48WUA1001C-II Spa Pump – 1 HP, 115 V, 2 speeds

The LX 48WUA1001C-II two-speed spa pump is designed for compatible 115 V installations. This listing specifies 1 HP and features a 48 Frame motor, 2 in. connections, and current ratings of 10.3 A at high speed and 3.8 A at low speed.

Technical specifications

• Model: LX / Lingxiao 48WUA1001C-II
• Power specified for this listing: 1 HP
• Power supply: 115 V / 60 Hz
• Operation: two speeds
• Current ratings: 10.3 A at high speed and 3.8 A at low speed
• Motor frame: 48 Frame
• Inlet and outlet: 2 in. nominal
• Two 2 in. unions and O-rings included
• Power cord not included

Operation in a compatible spa

The pump provides high speed for the jets and low speed for the cycles specified by the spa control. Filtration and heating use the configuration set by the spa manufacturer; the replacement pump must maintain these functions.

Compatibility and replacement

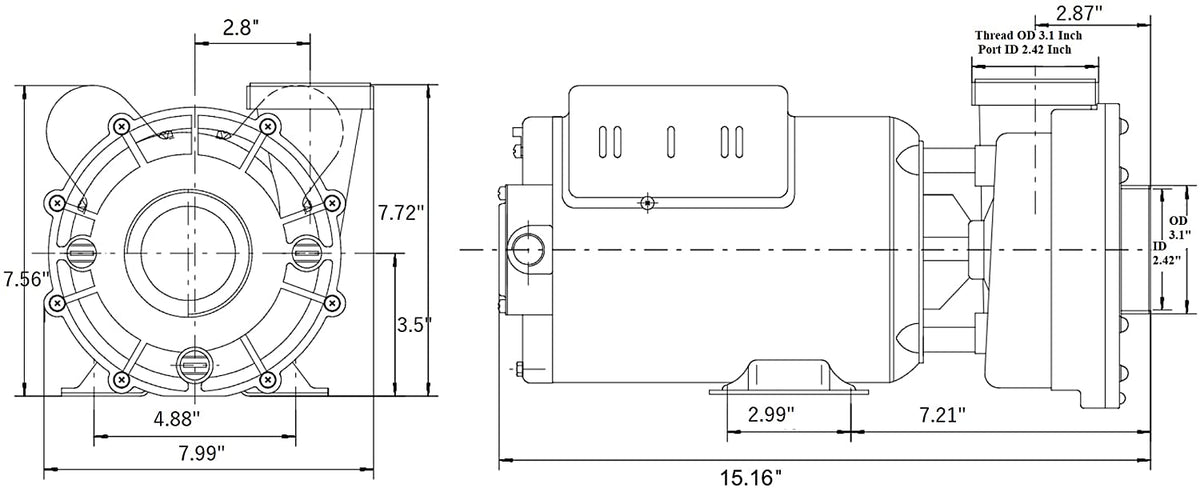

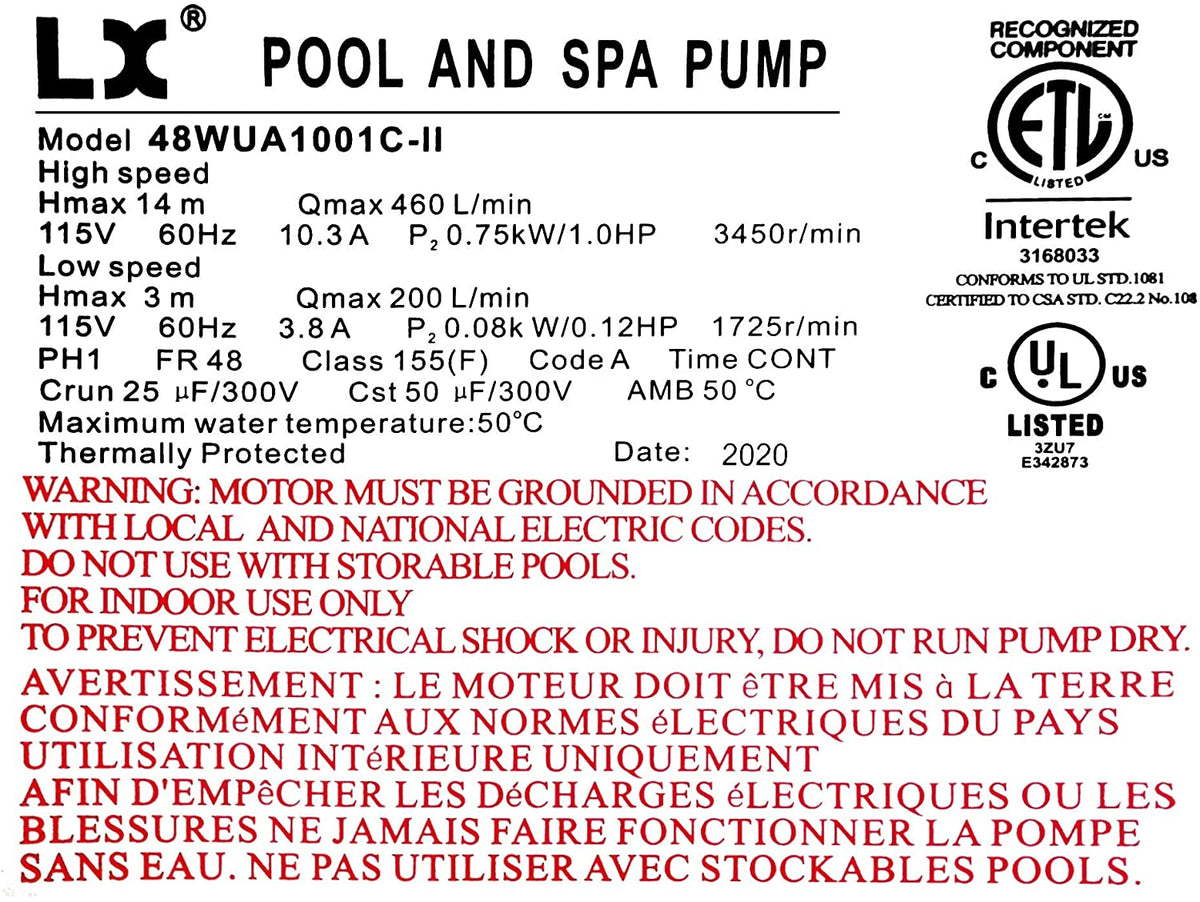

Choose based on the complete part number, 115 V rating, and 10.3/3.8 A current ratings. Catalogs may list the model with different HP ratings, so the nameplate is especially useful. Also compare the 48 Frame, unions, mounting points, and wet-end orientation.

Installation and startup

Have a qualified technician handle the replacement and electrical connection. They should verify control compatibility, watertightness, and circuit priming before restarting the system. Do not run the pump dry.

Need help choosing?

To confirm your choice, provide the spa model, year, and serial number, along with a photo of the current pump's nameplate. Include the part number 48WUA1001C-II and compare the power supply, speeds, connections, and mounting points.

Compare replacement pumps

Not sure whether you need a jet pump or a circulation pump? Browse our collection of spa pumps and selection guide. Compare the complete part number and your installation specifications before ordering.

What's in the box

One LX 48WUA1001C-II pump, two 2 in. unions, and their O-rings. Power cord not included.
