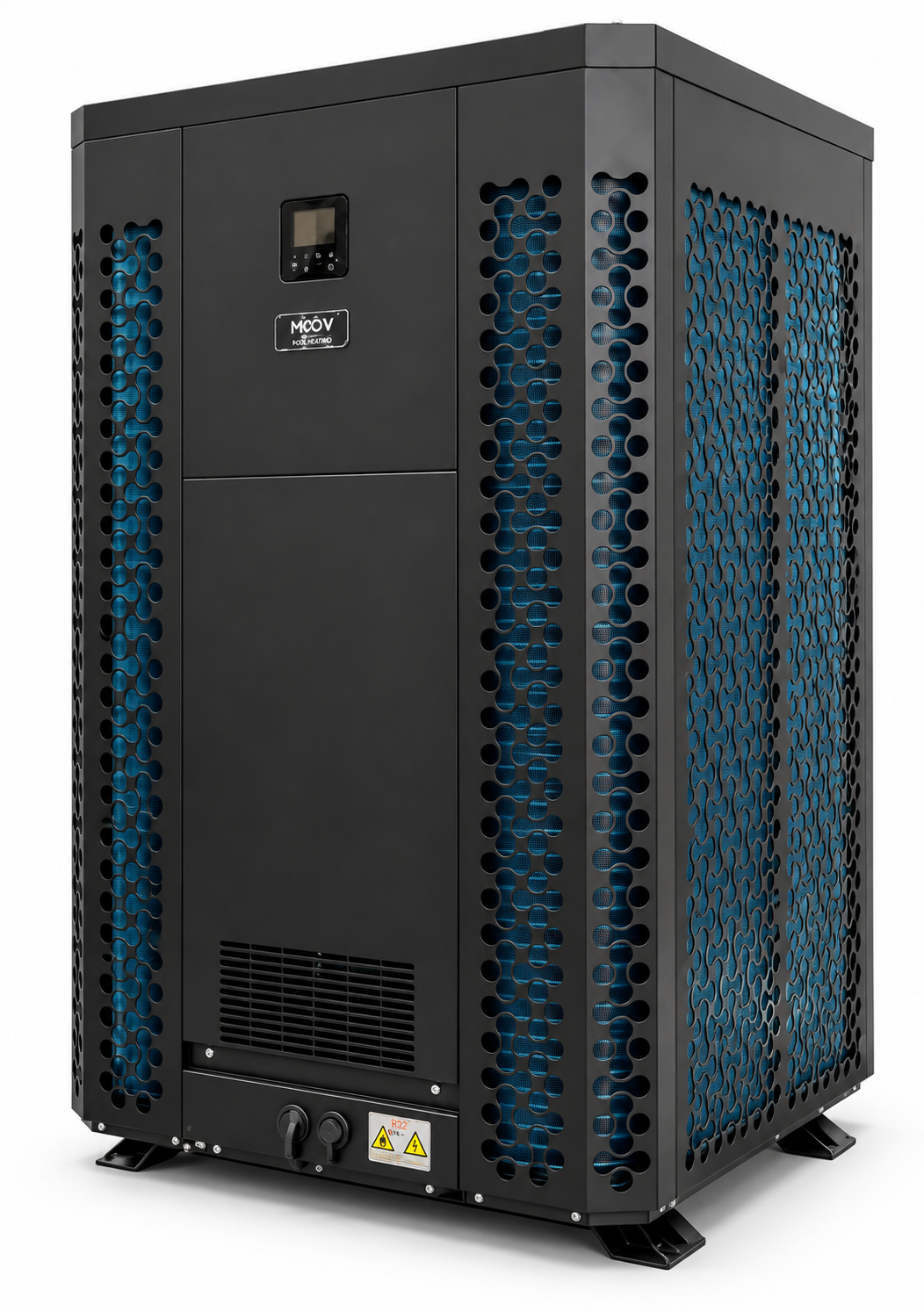

Moov TurboX 200K Heat Pump – Special order

Special order only. Supplier availability, lead time, and delivery terms must be confirmed with Piscine Hippocampe. No immediate stock is advertised.

The Moov TurboX 200K delivers high heating power for large pools and demanding installations. Its Full Inverter technology modulates output to match demand, with heating, cooling, and connected control. Available by special order only.

A heat pump designed for demanding projects

The TurboX 200K combines high heating capacity with a single-phase power supply. It makes large-pool projects possible without requiring a three-phase power supply, while adapting its operation to the pool’s actual needs.

Full Inverter: modulated output and high efficiency

The compressor continuously adjusts its output. When full capacity is not needed, lower-speed operation helps limit energy consumption and noise. The MTSR200 technical chart indicates a maximum COP of 14.0, meaning up to 14 units of heat delivered for each unit of electricity consumed at the corresponding test point.

Integrated heating and cooling

Maintain a comfortable swimming temperature with the two operating modes. The manufacturer’s chart lists a maximum heating capacity of 190,000 BTU/h and a cooling capacity of 90,000 BTU/h at 95 °F.

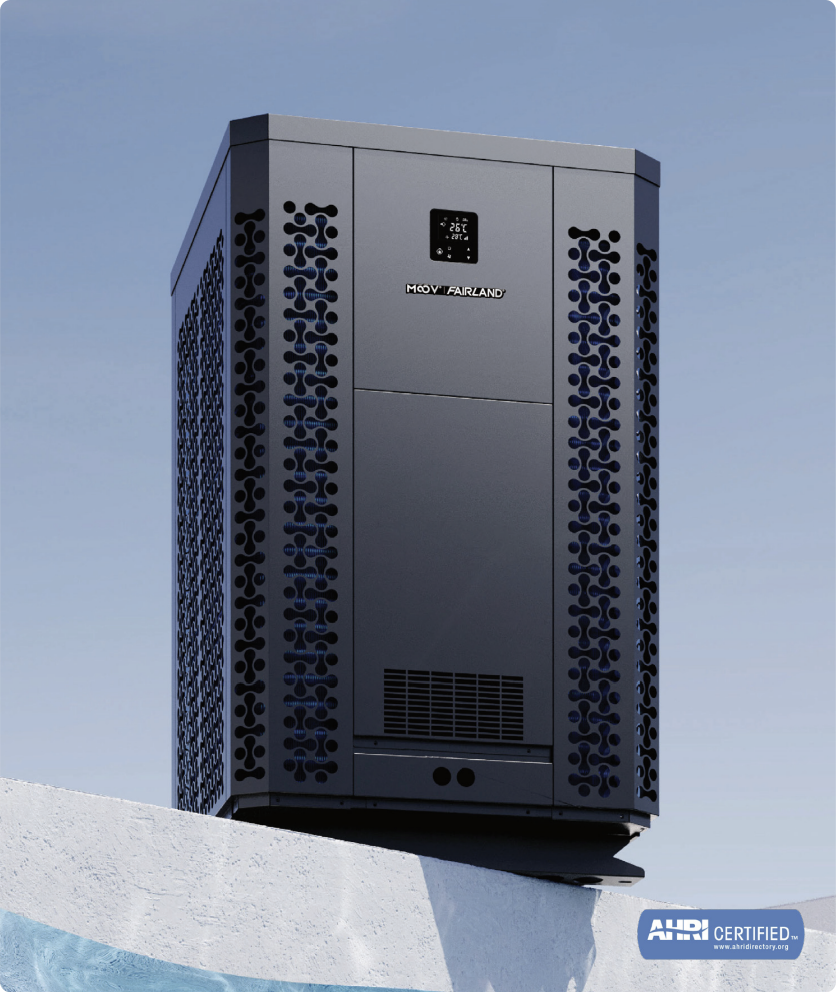

Construction suited to outdoor installation

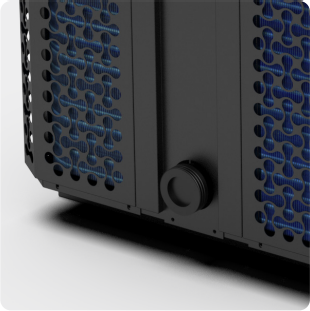

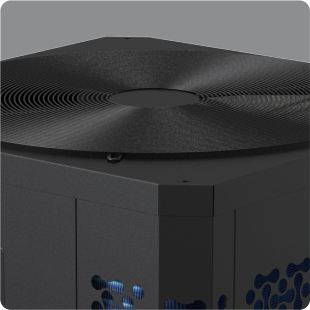

L’unit includes a titanium heat exchanger and a galvanized steel housing. Its vertical ventilation exhausts air upward; the clearances specified in the manual must be respected.

Useful details

• Trade name: Moov TurboX 200K BTU — technical chart reference: MTSR200
• Store SKU: CHAUFMOOVMTX200
• Maximum heating capacity: 190,000 BTU/h
• Maximum COP: 14.0
• Test conditions: air 80 °F / water 80 °F / humidity 80%
• Cooling capacity at 95 °F: 90,000 BTU/h
• Full Inverter technology — heating and cooling modes

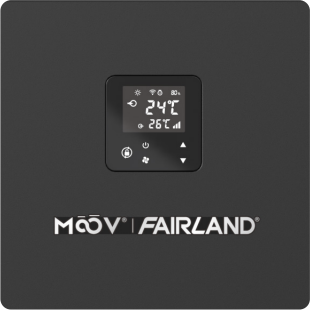

• Connected control
• Power supply: 208 to 230 V / single-phase / 60 Hz
• Heat exchanger: titanium — housing: galvanized steel
• Water inlet and outlet: 2 in
• Published operating temperature: 5 to 109 °F (approximately −15 to 43 °C)
• Noise level at 10 ft: 50 dB or less
• Net dimensions (L × W × H): 35.7 × 35.7 × 58.1 in
• Net weight: 500 lb (approximately 226.8 kg)
• Availability: special order only
• Shipping: oversized product

The trade name “200K” designates the product line. The values of 190,000 BTU/h and COP 14.0 are from the MTSR200 technical table in the 2026–2027 catalogue. Actual performance varies according to temperature, installation, and pool requirements; maximum capacity and COP do not necessarily correspond to the same operating point.

In the box

• 1 Moov TurboX 200K heat pump

Have the connection accessories required for your installation confirmed when you place your order.

Manufacturer's warranty

For installation in Quebec: 10-year warranty on the heat exchanger, 6 years on parts, and 6 years on labour. Outside Quebec: the catalogue warranty provides 10 years on the heat exchanger, 5 years on parts, and 3 years on labour. The manufacturer's terms and exclusions apply.

Plan your installation

Have the heat pump sized according to your pool volume, wind exposure, desired temperature, and season length. Plan for a base suitable for a weight of 500 lb, ventilation clearances, and access for oversized delivery. The electrical and plumbing connections must comply with the manual and the nameplate of the model delivered.
