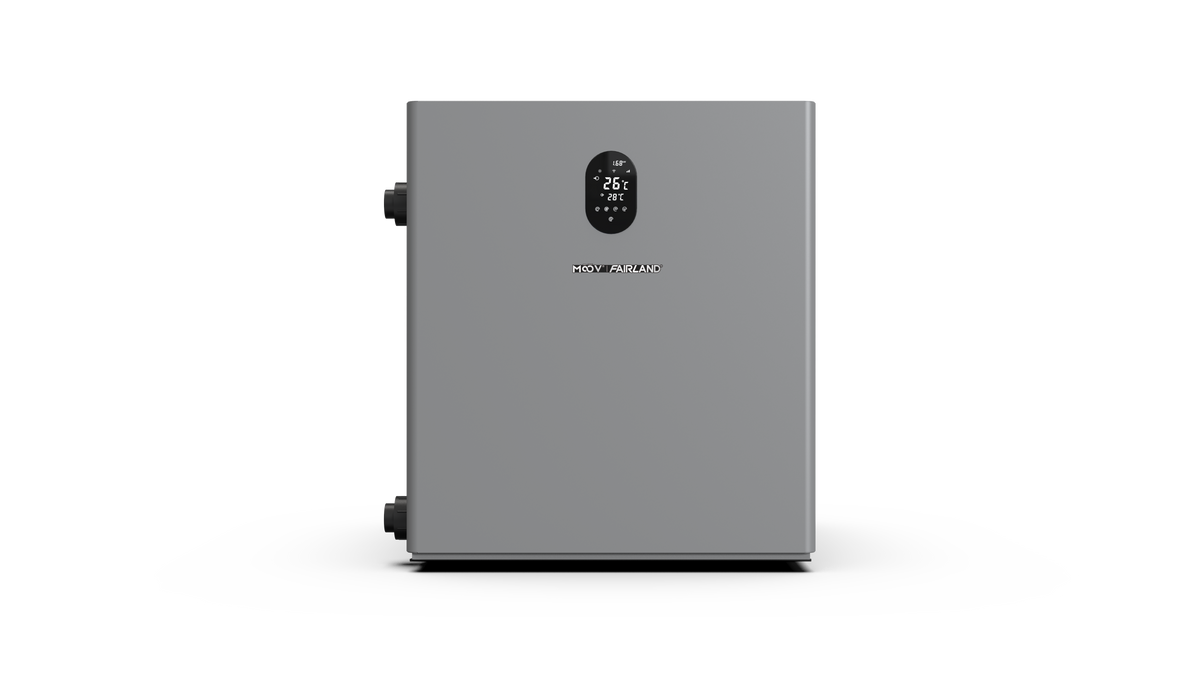

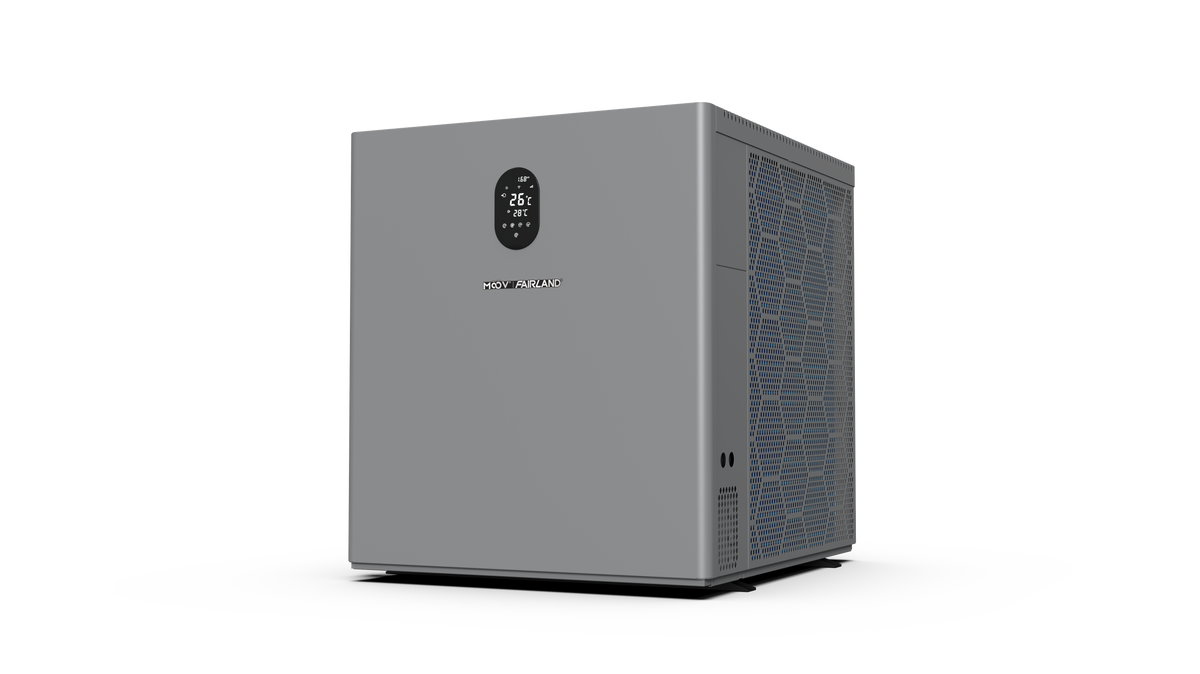

Moov Turbo X MTX145 Heat Pump – 140 900 BTU/h

Upgrade to premium pool heating with the Moov Turbo X MTX145. Its Full Inverter technology adjusts output to the pool’s needs, with a maximum capacity of 140,900 BTU/h and a COP of up to 16.6 under the manufacturer’s test conditions.

Moov’s top-of-the-line heat pump range

The Turbo X brings together Moov’s advanced heating technologies in a carefully designed unit. Full Inverter continuously modulates its output for smooth, efficient operation, while its aluminum casing complements refined outdoor spaces.

Outstanding efficiency: COP up to 16.6

COP expresses the ratio between the heat produced and the electrical energy consumed. A maximum COP of 16.6 represents up to 16.6 units of heat delivered for one unit of electricity consumed, at the corresponding test point. This maximum is not a constant efficiency: it varies with temperature, load, and installation conditions.

Heat or cool your pool

Heating or cooling: adjust your pool’s temperature to the season. The R32 refrigerant and titanium heat exchanger round out this high-performance design. The MTX145 uses vertical ventilation with upward air discharge.

The details that matter

• Model: MTX145 — SKU: CHAUFMOOV145MTX
• Maximum heating capacity: 140,900 BTU/h
• Maximum COP: 16.6
• Heating and COP test conditions: air 80 °F / water 80 °F / humidity 80%
• Cooling capacity published at 95 °F: 56,400 BTU
• Technology: Full Inverter, heating and cooling

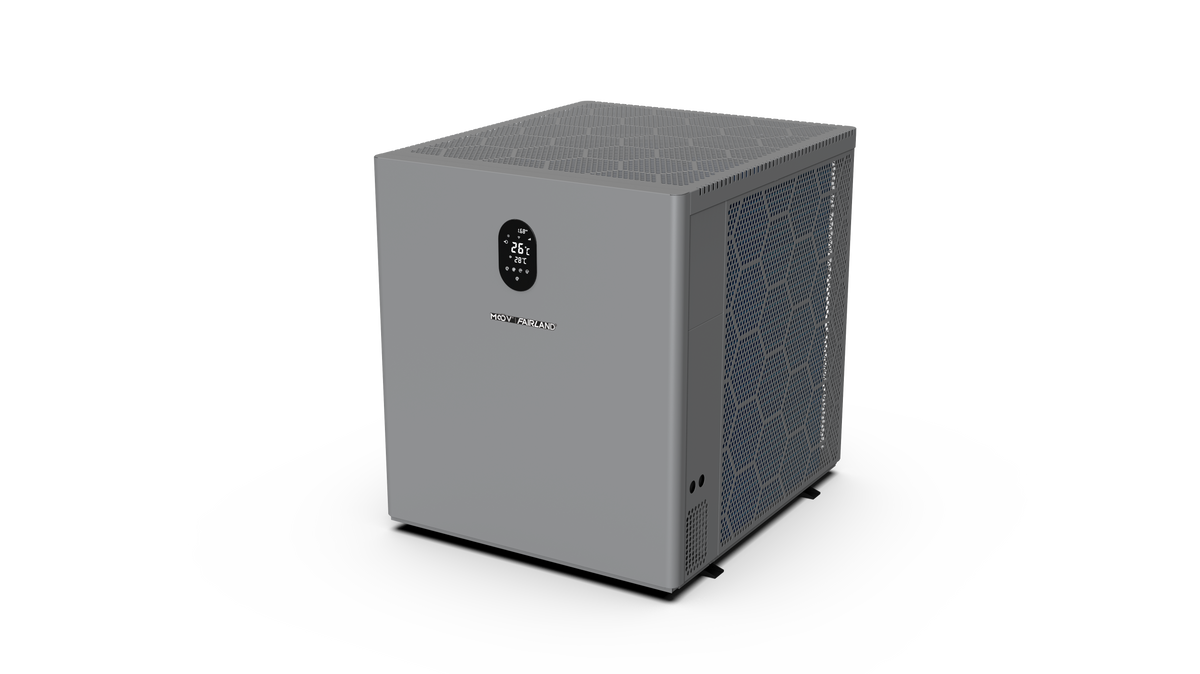

• Refrigerant: R32 — heat exchanger: titanium — casing: aluminum

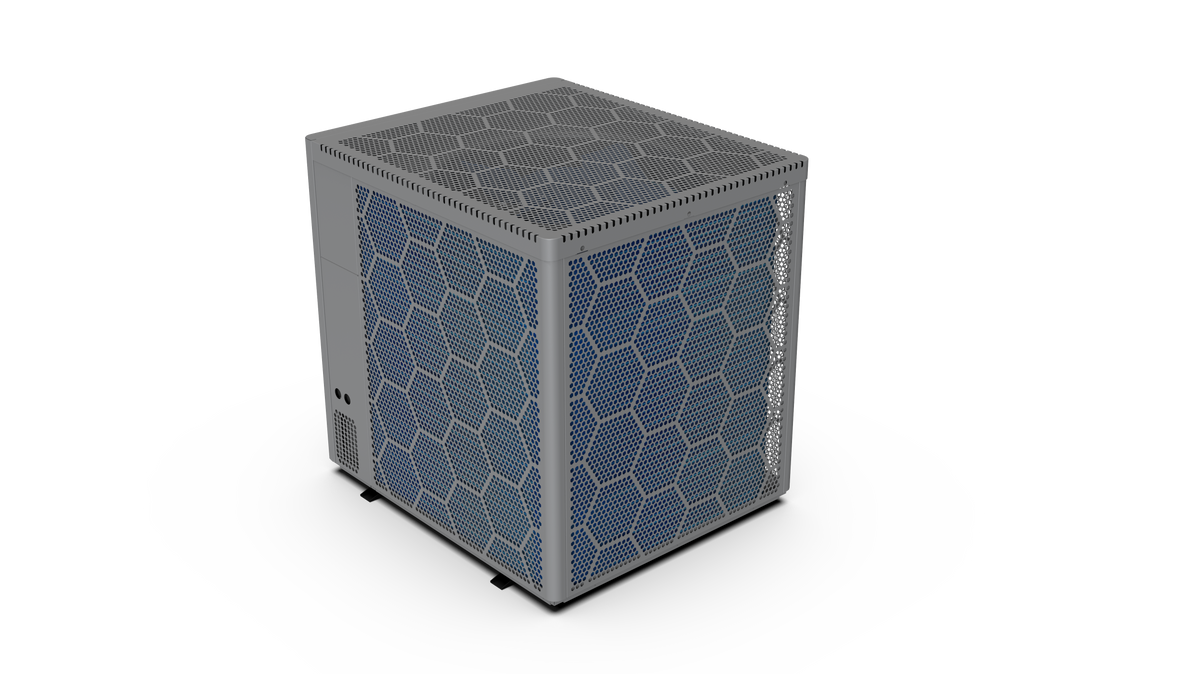

• Vertical ventilation
• Power supply: 208 to 230 V, single-phase, 60 Hz

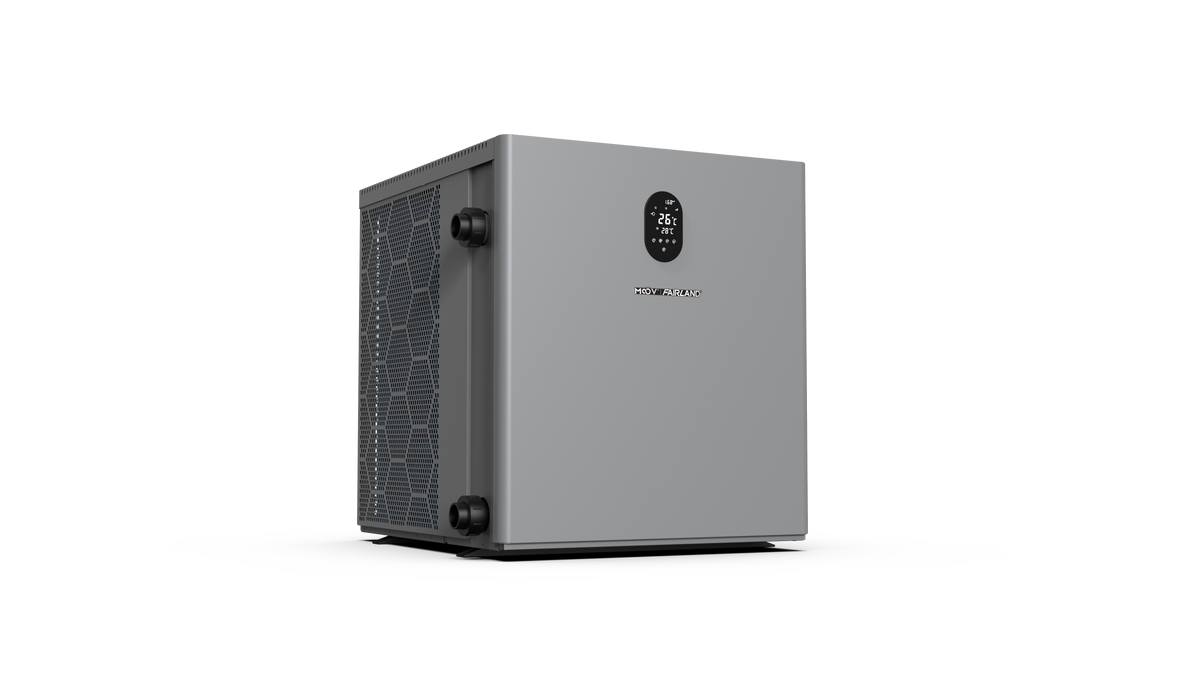

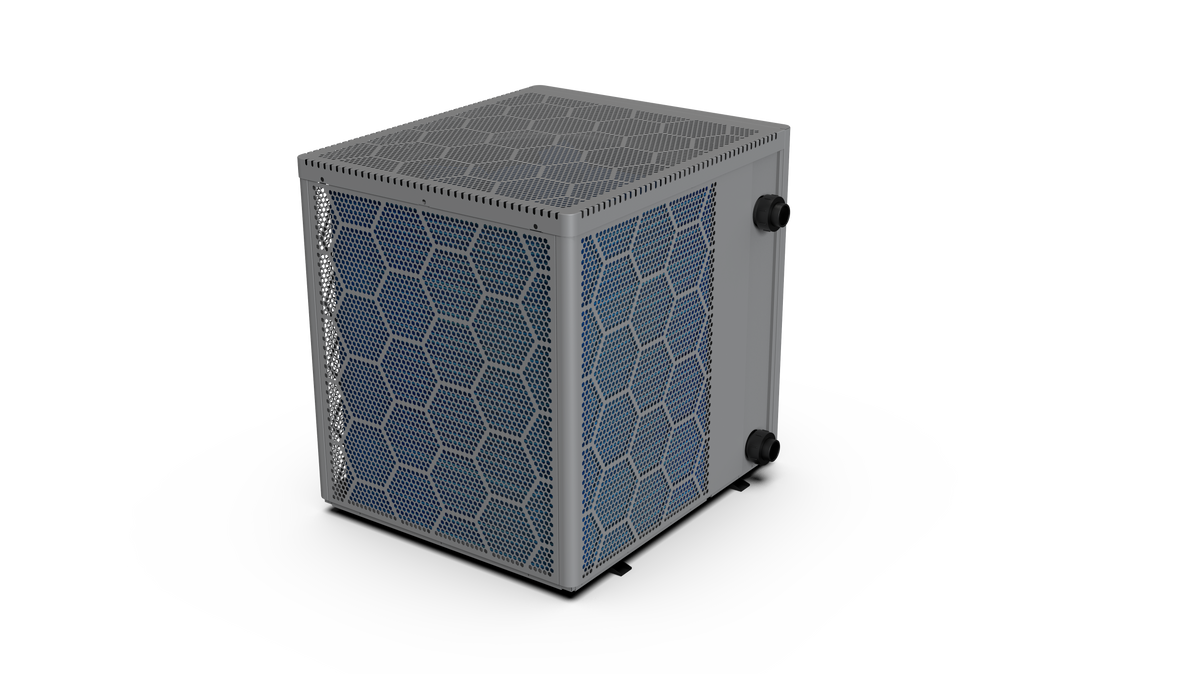

• Water inlet and outlet: 2 in
• Published operating temperature: 5 to 109 °F, or approximately −15 to 43 °C
• Noise level at 10 ft: 39.8 to 49.5 dB
• Net dimensions (L × W × H): 40.7 × 31.8 × 41.9 in
• Estimated net weight in the catalog: 158 kg
• Shipping: oversize product

The operating range does not guarantee maximum capacity at all temperatures. Performance varies depending on weather conditions, installation, and desired temperature.

In the box

• 1 Moov Turbo X MTX145 pool heat pump

This listing is for the heat pump. Installation accessories supplied are not detailed in the catalog; confirm the items required for your connection when purchasing.

Manufacturer’s warranty

For installation in Quebec: 10-year warranty on the heat exchanger, 6 years on parts, and 6 years on labor. Outside Quebec: catalog warranty of 10 years on the heat exchanger, 5 years on parts, and 3 years on labor. The manufacturer’s terms and exclusions apply.

Choosing and installing your heat pump

Have your MTX145 sized according to your pool volume, desired temperature, wind exposure, and swimming season. Allow the required clearance for vertical ventilation, and have the electrical circuit checked against the model’s rating plate and manual. A solar cover helps limit heat loss. Oversize shipping.
