Une tête de filtreur Hayward pour les fonctions du filtre à sable

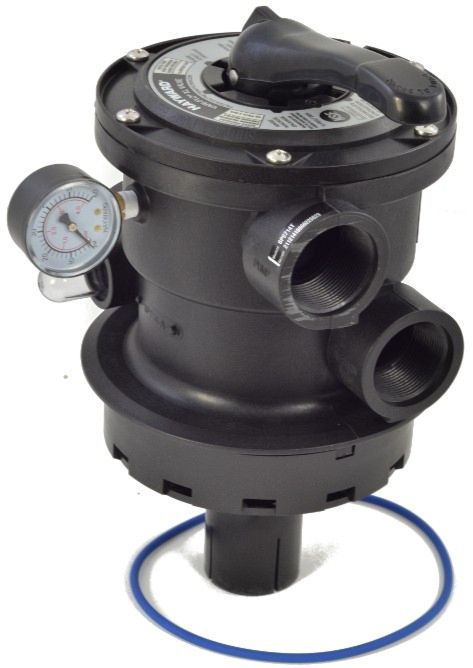

Hayward Vari-Flo SP0714TC filter head – 1½ in., 7-position
- Filtration: normal circulation and filtration mode
- Backwash: cleaning of the filter sand
- Rinse: sand stabilization after washing
- Recirculate: water circulation without passing through the filter
Hayward Vari-Flo SP0714TC filter head – 1½ in., 7-position is backordered and will ship as soon as it is back in stock.
Pickup available at Piscine Hippocampe succursale
Usually ready in 24 hours
Hayward Vari-Flo SP0714TC filter head – 1½ in., 7-position is backordered and will ship as soon as it is back in stock.
In the box
What you receive.
Choose with confidence
The product in detail.
The Hayward Vari-Flo SP0714TC filter head is a 1½ in top-mount multiport valve for compatible sand filters. Its seven positions cover filtration, maintenance and seasonal closure functions.
Vari-Flo valve functions
- Filter: water flows through the filter media.
- Backwash: backwashing the filter media.
- Rinse: rinsing after backwashing.
- Recirculate: circulating water without passing it through the filter media.
- Waste: draining water without filtering it.
- Closed: closing off water flow; pump off.
- Winter: seasonal closure position as specified in the manual; does not replace the other winterization steps.
Specifications
- Brand: Hayward.
- Product line: Vari-Flo.
- Part number: SP0714TC.
- Type: filter head / multiport valve for sand filters.
- Mounting: top-mount, on the filter tank.
- Nominal connection size: 1½ in.
- Number of positions: 7.
- Store SKU: HAYSP0714TC.
Choosing a compatible filter head
The SP0714TC is suitable for sand filters whose parts list recommends this part number. Check the exact filter model, mounting collar, center pipe and plumbing connections. A 1½ in connection alone is not enough to confirm compatibility.
To replace an existing filter head, compare the part number on the valve with the filter parts list. Send this information to Piscine Hippocampe if you would like to have your selection verified before ordering.
Use and installation
Always stop the pump before changing the handle position. Before removing the valve, turn off the power and fully depressurize the filter according to its instructions. Check the seals, collar and center pipe alignment during installation, then check for leaks when restarting the system.
Refer to the filter manual for the backwash, rinse and winterization sequences suited to your installation. Do not use the Closed position while the pump is running.
In the box
1 Hayward Vari-Flo SP0714TC 1½ in multiport valve. Sand filter and pump not included.
Useful details.
Why replace your multiport valve?
Water leaks
Pressure loss
Less effective filtration
Inadequate sand washing
Reduced water circulation
Replacing with an original Hayward valve restores system performance and extends the filter’s lifespan.
What is the reference number for this product?
Reference: SP0714TC
What is included in this set?
Quel est le format des raccordements?
Peut-on changer la position lorsque la pompe fonctionne?
Que comprend cette offre?
The Hippocampe council
The right product.
The right advice.
A question about compatibility, selection, or maintenance? Our team is here to support you before and after your purchase.
