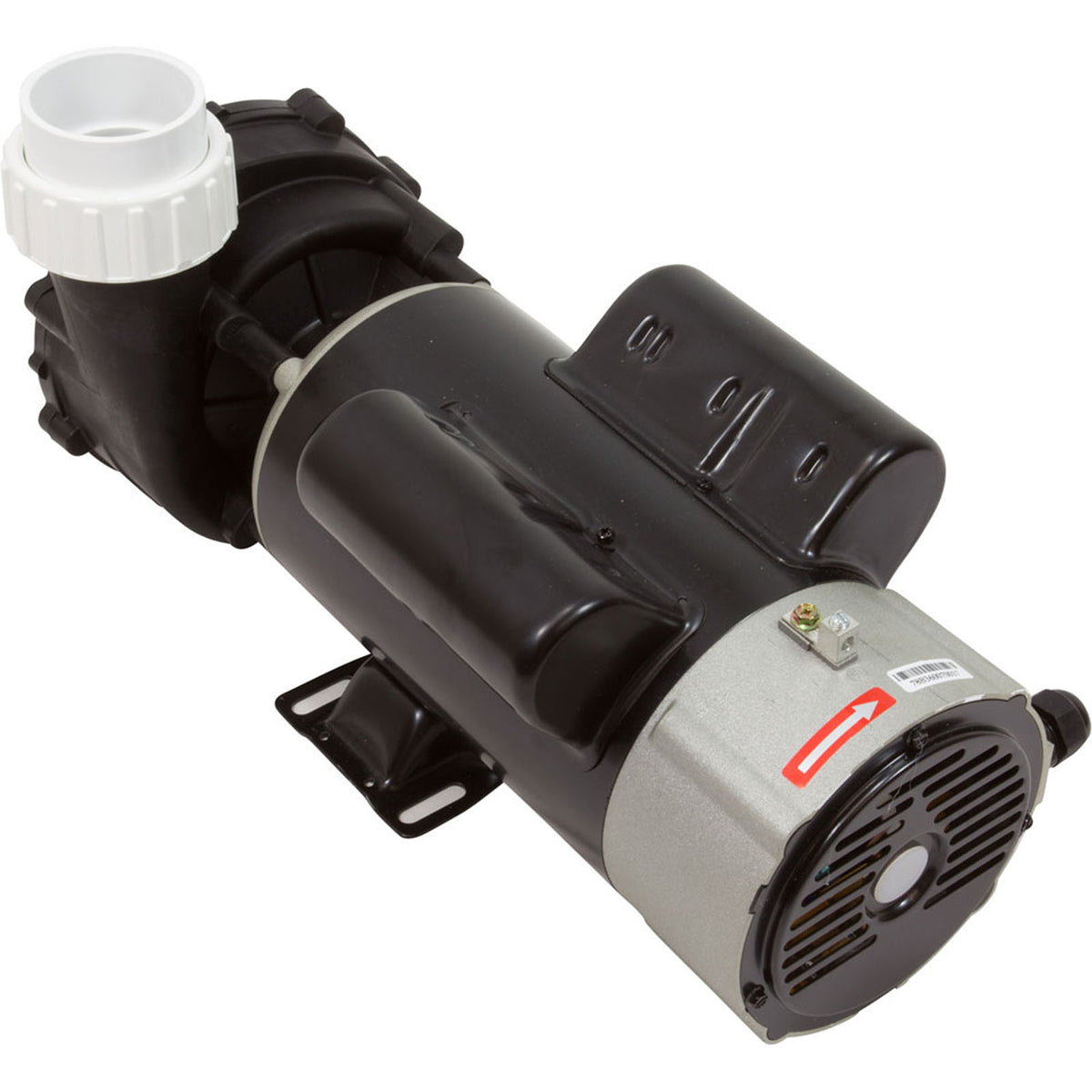

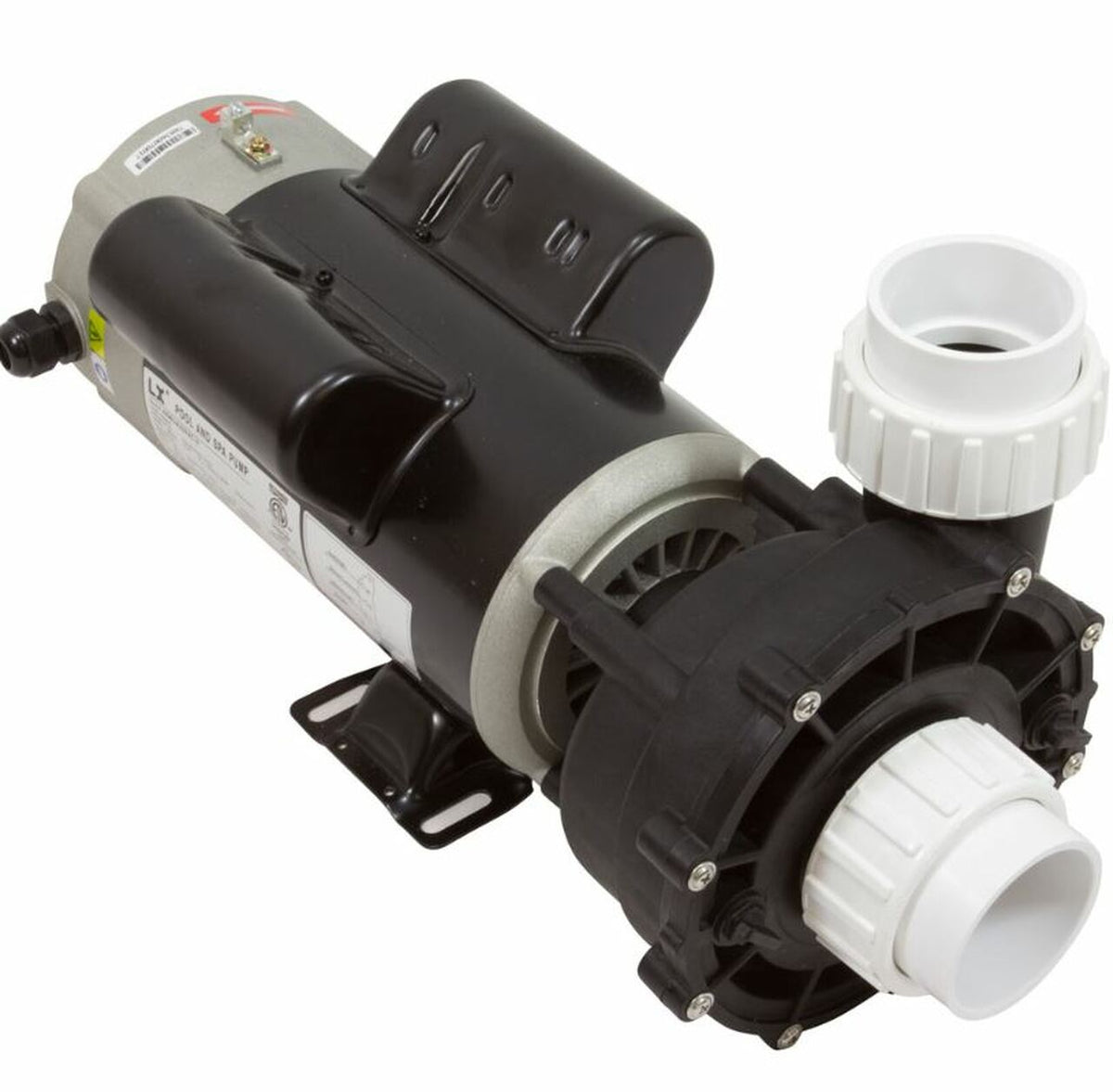

LX 48WUA2002C-II Spa Pump – 230 V, 2 speeds

The LX 48WUA2002C-II pump is a two-speed spa pump powered by 230 V. Its 48 Frame motor, 2 in. connections, and 10/3 A current ratings allow you to compare this version with your spa pump.

Technical specifications

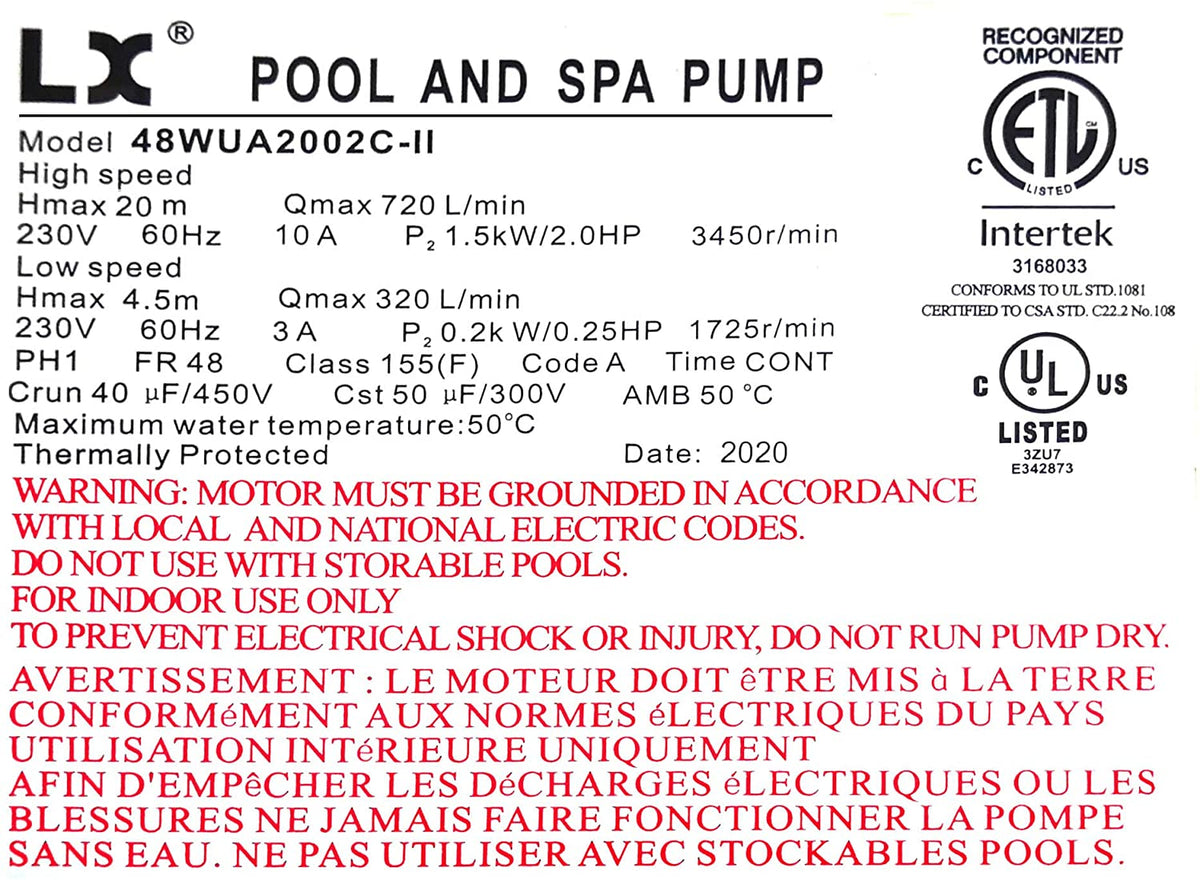

• Model: LX / Lingxiao 48WUA2002C-II
• Power supply: 230 V / 60 Hz
• Two speeds: 3450 and 1725 rpm
• Current ratings: 10 A at high speed and 3 A at low speed
• Motor frame: 48 Frame
• Inlet and outlet: 2 in. nominal
• 2 in. unions with gaskets included

Operation in a compatible spa

High speed powers the jets when the spa requires greater flow. Low speed can be used for filtration and heating cycles, depending on the installation. This pump requires a controller compatible with both speeds.

Compatibility and replacement

Compare the 48WUA2002C-II model, voltage, 48 frame, and 10/3 A current ratings. To replace a Waterway Executive 48 or another brand, also check the footprint, thread type, and outlet positions. Plumbing modifications may be required.

Package contents

One LX 48WUA2002C-II pump with 2 in. union fittings and gaskets. Check the required cord and connector.

Installation and commissioning

Have a qualified technician handle the replacement and electrical connection. They must check controller compatibility, sealing, and circuit priming before returning the spa to service. Do not operate the pump dry.

Need help choosing?

To confirm your choice, provide the spa model, year, and serial number, along with a photo of the plate on the current pump. Mention part number 48WUA2002C-II and compare the power supply, speeds, connections, and mounting points.
