Central Spa  |  SKU: CENTPA-VSP390

ProAqua Kraken PA-VSP390 – 3,5 THP à vitesse variable

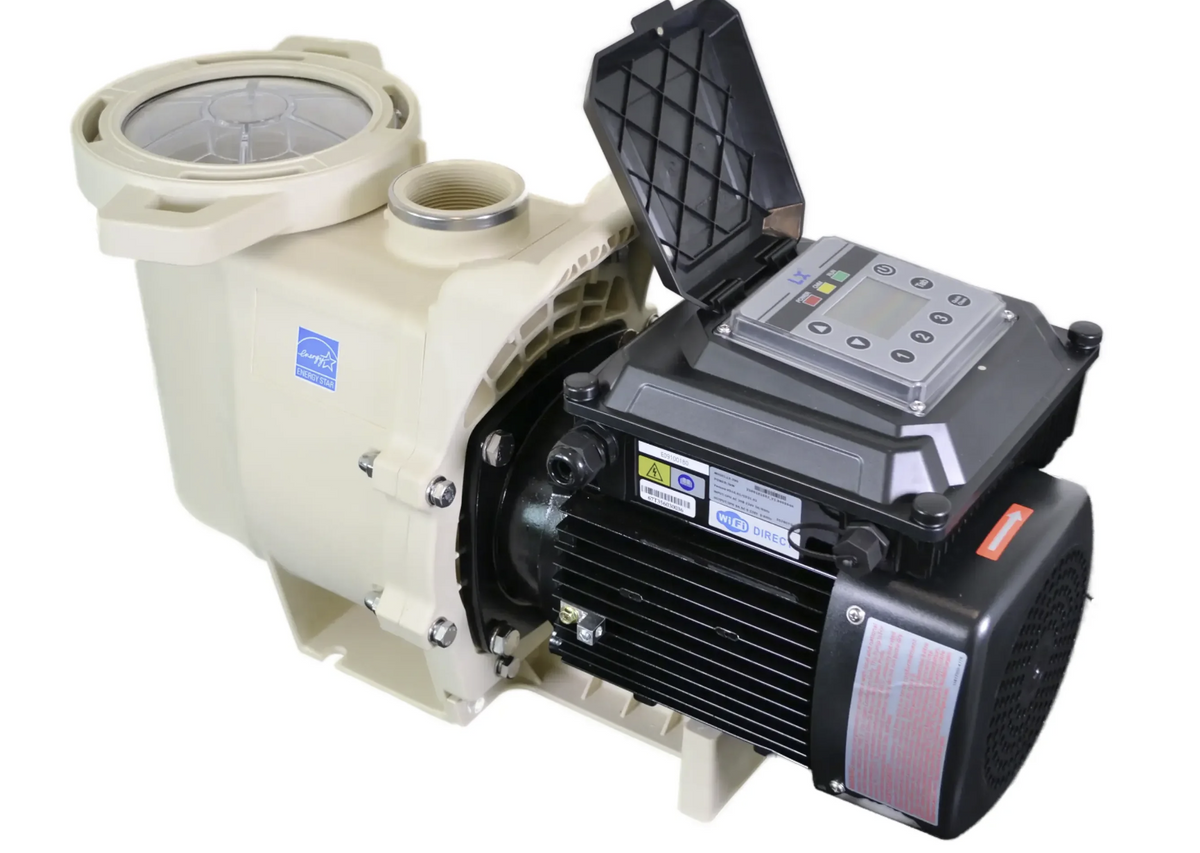

ProAqua Kraken 3.5 THP Variable-Speed Pool Pump PA-VSP390

The ProAqua Kraken PA-VSP390 is a 3.5 THP variable-speed pump designed for in-ground pools requiring powerful, quiet, and energy-efficient circulation.
  • Puissance totale : 3,5 THP
  • Alimentation : 230 V / 60 Hz
  • Vitesses et horaires programmables
  • Panier de préfiltre et couvercle transparent
$1,019.99 $1,399.99

Pickup available at Piscine Hippocampe succursale

Usually ready in 24 hours

In the box

What you receive.

1 ProAqua Kraken PA-VSP390 variable-speed pump

2-inch fittings

1.5-inch adapters

Additional fittings, electrical cables, and installation accessories are sold separately unless otherwise indicated.

Choose with confidence

The product in detail.

ProAqua Kraken 3.5 THP PA-VSP390 Variable-Speed Pool Pump

The ProAqua Kraken PA-VSP390 is a 3.5 THP variable-speed pump designed for inground pools requiring powerful, quiet, and energy-efficient circulation. It runs on a 230 V power supply and lets you program filtration cycles and motor speed to suit the installation’s needs.

With a maximum flow rate of up to 180 GPM, it is especially well suited to larger pools, longer plumbing circuits, and systems with multiple pieces of equipment.

Why choose the ProAqua Kraken PA-VSP390?

  • 3.5 THP variable-speed pump
  • Maximum flow rate of up to 180 GPM
  • 230 V / 60 Hz power supply
  • 16 A motor
  • Energy factor WEF 7.262
  • Programmable operating cycles and speeds
  • Operates at approximately 42 dB at low speed
  • Compatible with 1.5 in. and 2 in. plumbing
  • 1.5 in. adapters included
  • Self-priming pump
  • Large-capacity pre-filter basket
  • Transparent lid for quick inspection
  • Energy Star 3.1, DOE, and CEC certifications
  • 2-year limited warranty

Variable speed to adapt circulation to the pool’s needs

Unlike a single-speed pump that constantly runs at full power, the Kraken PA-VSP390 lets you adjust the speed to suit the task.

It can be programmed for, among other things:

  • daily filtration at low speed;
  • operating a water heater;
  • pool cleaning;
  • periods of intensive circulation;
  • powering certain aquatic equipment;
  • system priming and startup.

Using a speed suited to each task can help reduce electricity consumption, noise, and unnecessary system wear.

Programming Filtration Cycles

The integrated control panel lets you customize operating periods and speeds. This programming helps maintain consistent circulation while adapting the pump’s power to the pool’s actual needs.

Actual energy savings vary depending on programming, operating time, plumbing, and installed equipment.

High circulation capacity: up to 180 GPM

With its 3.5 THP power and a maximum flow rate of up to 180 GPM, the Kraken PA-VSP390 is suitable for installations requiring greater circulation.

  • Residential in-ground pools
  • Systems with multiple water returns
  • Installations with heaters
  • Longer plumbing circuits
  • Equipment requiring high circulation
  • Replacement for a high-power pump

Sizing must always be verified based on the filter, plumbing, and pool equipment.

Quiet operation at low speed

At low speed, the pump can operate at approximately 42 dB, depending on installation conditions. Reducing the speed also helps reduce vibration and the pressure exerted on the plumbing.

Simplified installation and maintenance

The Kraken PA-VSP390 uses a 2 in. main connection and includes 1.5 in. adapters to facilitate integration with different plumbing configurations.

  • Self-priming design
  • Large-capacity pre-filter basket
  • Transparent lid
  • Integrated handle
  • Easy access to the basket for maintenance

Technical specifications

Brand ProAqua
Series Kraken
Model PA-VSP390
Application In-ground pool
Total power 3.5 THP
Power supply 230 V / 60 Hz
Amperage 16 A
Energy factor WEF 7.262
Maximum flow rate Up to 180 GPM
Noise level Starting at approximately 42 dB
Main connection 2 in.
Adapters included 1.5 in.
Priming Self-priming
Programming Operating cycles and speeds
Certifications Energy Star 3.1, DOE and CEC
Warranty 2-year limited

Compatibility and sizing

Before purchasing, it is recommended to check the maximum flow rate supported by the filter, the plumbing diameter, the heater capacity, the return and suction configuration, and the power of the pump being replaced.

A pump that is too powerful for the filter or plumbing can impair system performance. Professional assessment is recommended.

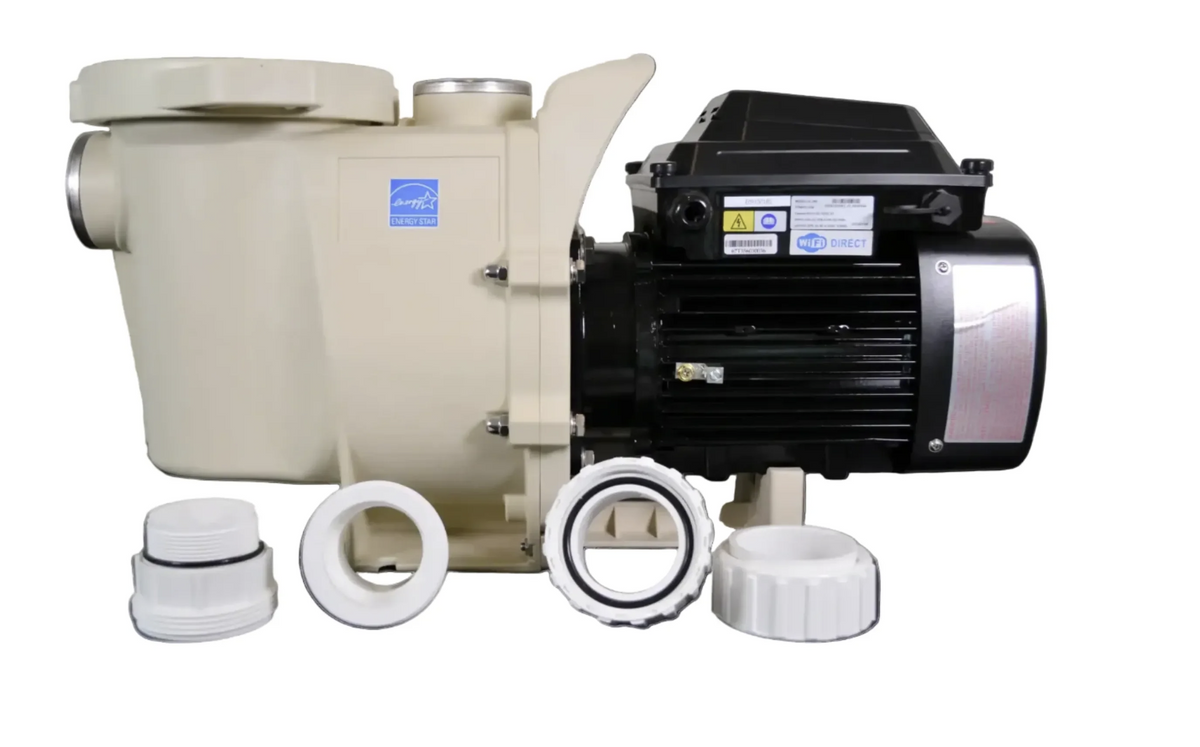

Package contents

  • 1 ProAqua Kraken PA-VSP390 variable-speed pump
  • 2-inch unions
  • 1.5-inch adapters

Additional unions, electrical cables, and installation accessories are sold separately unless otherwise noted.

A powerful pump for demanding installations

The ProAqua Kraken PA-VSP390 combines power, flexible programming, and quiet operation to modernize the filtration system of an in-ground pool or replace a high-power single-speed pump.

Frequently asked questions

What power supply does this model use?

The Kraken PA-VSP390 is specified for a 230 V / 60 Hz power supply. Have the available voltage, wiring, and nameplate requirements checked before installation.

How do I choose between the Kraken 2.2 and 3.5 THP?

The choice depends on the hydraulic circuit and equipment, not just the pool volume. Have the flow requirements compared with the pump curve, filter, and plumbing.

Is the maximum flow rate the flow rate I’ll get in my pool?

No. Actual flow depends on speed and circuit resistance, including pipes, elbows, the filter, and other equipment. The advertised maximum flow rate is not guaranteed for your installation.

Which unions are included?

The package includes a Kraken PA-VSP390 pump, 2-inch unions, and 1½-inch adapters. Additional unions and installation accessories are sold separately.

How much can I expect to save on electricity?

Savings vary depending on speed, schedules, the pump being replaced, and circuit resistance. Set filtration schedules with the needs of all equipment in mind; no fixed amount of savings is guaranteed.

Can the speed be reduced for every task?

Heating and treatment equipment may require a minimum flow rate. Adjust the pump schedules to meet these requirements rather than always choosing the lowest speed.

Useful details.

What reference number is listed for this product?
Model: PA-VSP390
What is this product used for?
Le choix dépend du circuit hydraulique et des équipements, pas seulement du volume de la piscine. Faites comparer les besoins de débit à la courbe de la pompe, au filtre et à la plomberie.
What electrical specifications are listed?
Non. Le débit réel dépend de la vitesse et de la résistance du circuit : tuyaux, coudes, filtre et autres équipements. Le débit maximal annoncé ne constitue pas un débit garanti sur votre installation.
What does this set include?
1 ProAqua Kraken PA-VSP390 variable-speed pump
2-inch fittings
1.5-inch adapters
Additional fittings, electrical cables, and installation accessories are sold separately unless otherwise indicated.
Quelles économies d’électricité peut-on attendre?
Les économies varient selon la vitesse, les horaires, la pompe remplacée et la résistance du circuit. Réglez la filtration en tenant compte des besoins de tous les équipements; aucun montant fixe d’économie n’est garanti.
Peut-on réduire la vitesse pour toutes les tâches?
Les équipements de chauffage et de traitement peuvent imposer un débit minimal. Ajustez les programmes de la pompe à ces exigences plutôt que de choisir systématiquement la vitesse la plus basse.
