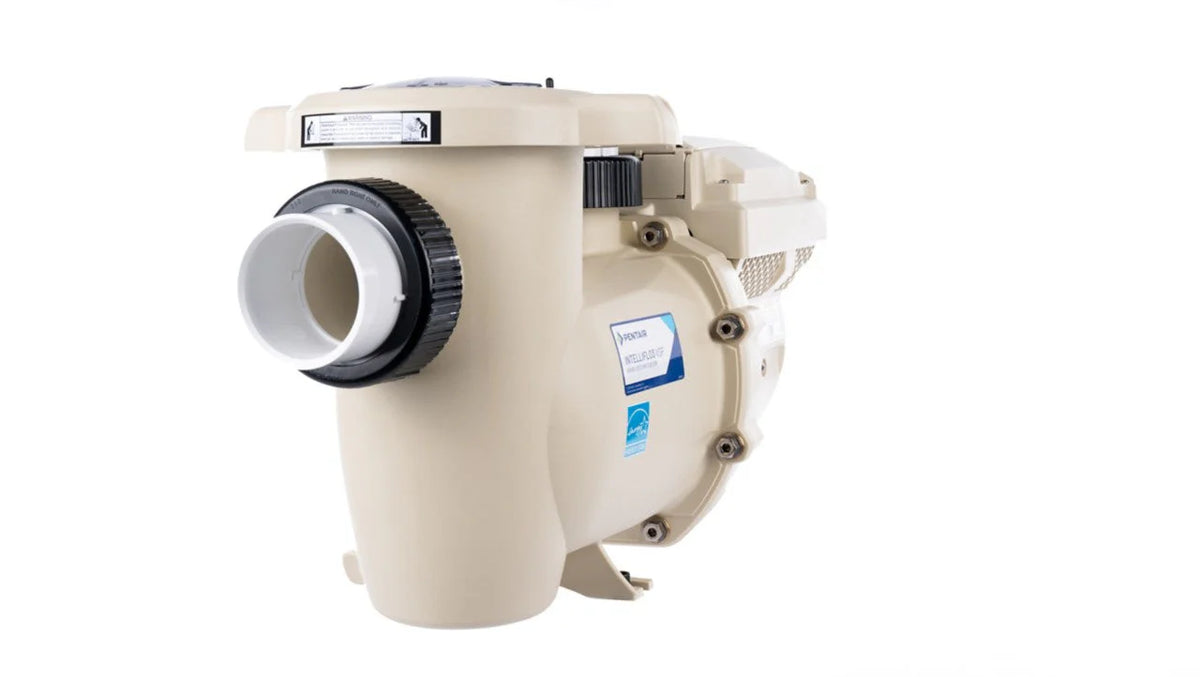

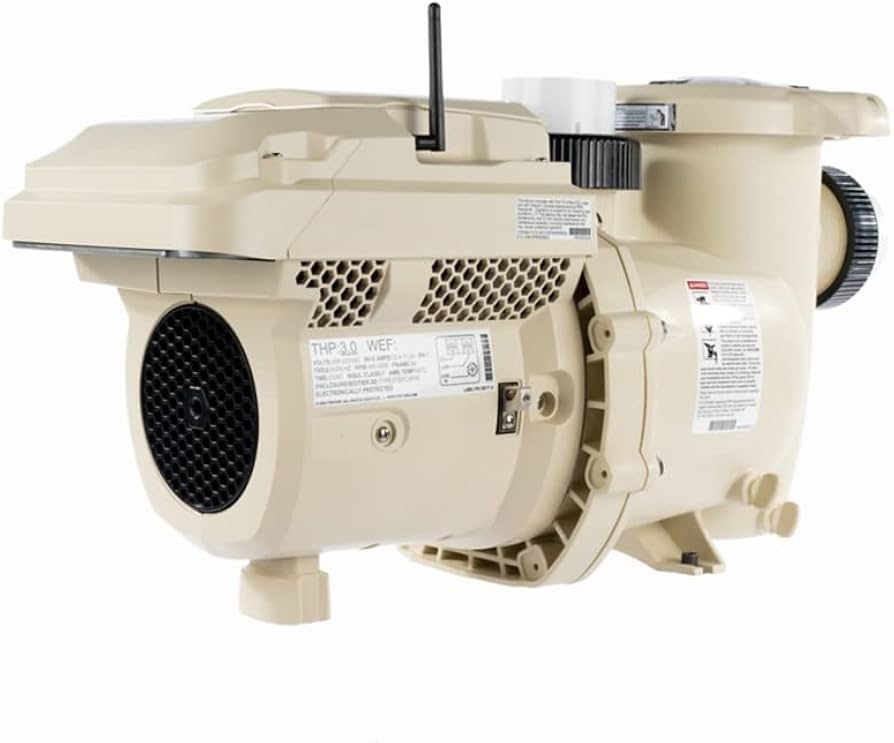

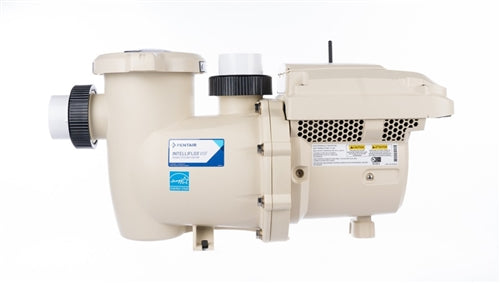

Pentair IntelliFlo3 VSF 3 HP Pump with Relay Board – 011076

For a pool whose system requires a higher flow rate, the Pentair IntelliFlo3 VSF 3 HP 011076 combines flow regulation, connected control, and an included relay board for two compatible pieces of equipment.

A 3 HP pump to choose according to your installation

The 3 HP model should be considered when the hydraulic system and accessories justify this capacity. Before purchasing, compare the circulation requirements, filter, plumbing, and any water features. A more powerful pump must remain compatible with all your equipment.

Variable speed and flow: two ways to adjust circulation

You can program a rotation speed or a target flow rate. In flow mode, the pump adjusts its speed to changes in system resistance within its operating limits. This regulation makes it easier to maintain the setpoint instead of imposing the same motor speed at all times.

Relay board included with model 011076

The I/O board can control two compatible auxiliary pieces of equipment. Its separate outputs are limited to 5 A and 16 A. It can simplify control of certain accessories; their compatibility and wiring must be verified before installation.

Your filtration accessible from the app

Connected control uses the Pentair Pool app for pump schedules and operation. A local touchscreen is available as an option and sold separately. An appropriate network configuration is required for remote functions.

Features of model 011076

Total power: 3 HP. Power supply: 208–230 V, 50/60 Hz. Full-load current: 12.4 A at 208 V and 11.2 A at 230 V.

WEF: 7.1. Listed weight: 55 lb. I/O board: included. Store reference: POMPE011076.

Standard unions: 2 in or 2.5 in. Adaptation to 3 in plumbing requires the appropriate optional kit, sold separately.

Why buy your pump from Piscine Hippocampe?

Our team in Delson, on Montreal’s South Shore, can help you determine whether the 3 HP version meets the needs of your project. The choice depends on your actual installation: current pump, filter, heater, salt system, and accessories.

Prepare photos of your pump’s label and connections, along with the models of your equipment. Indicate which accessories you would like to order with the relays. This information makes it easier to guide your choice before purchase.

Appropriate programming to manage usage

Operating at an appropriate speed can reduce noise and consumption compared with continuous operation at full speed. Results vary depending on the pump being replaced, schedules, and system resistance. The requirements of the filter and accessories should guide the settings.

Plan for replacement and installation

Check the available space, diameters, and connection heights. Have the electrical and accessory connections completed by a qualified person in accordance with the Pentair manual. Commissioning also includes checking priming and programming.

Advice for choosing between 1.5 HP and 3 HP

Pool size alone is not enough to distinguish between two pumps. Long piping, water features, or multiple pieces of equipment can change the requirements, while the filter and pipes impose their own limits. Have the system requirements compared with the performance curves before choosing your in-ground pool pump.
