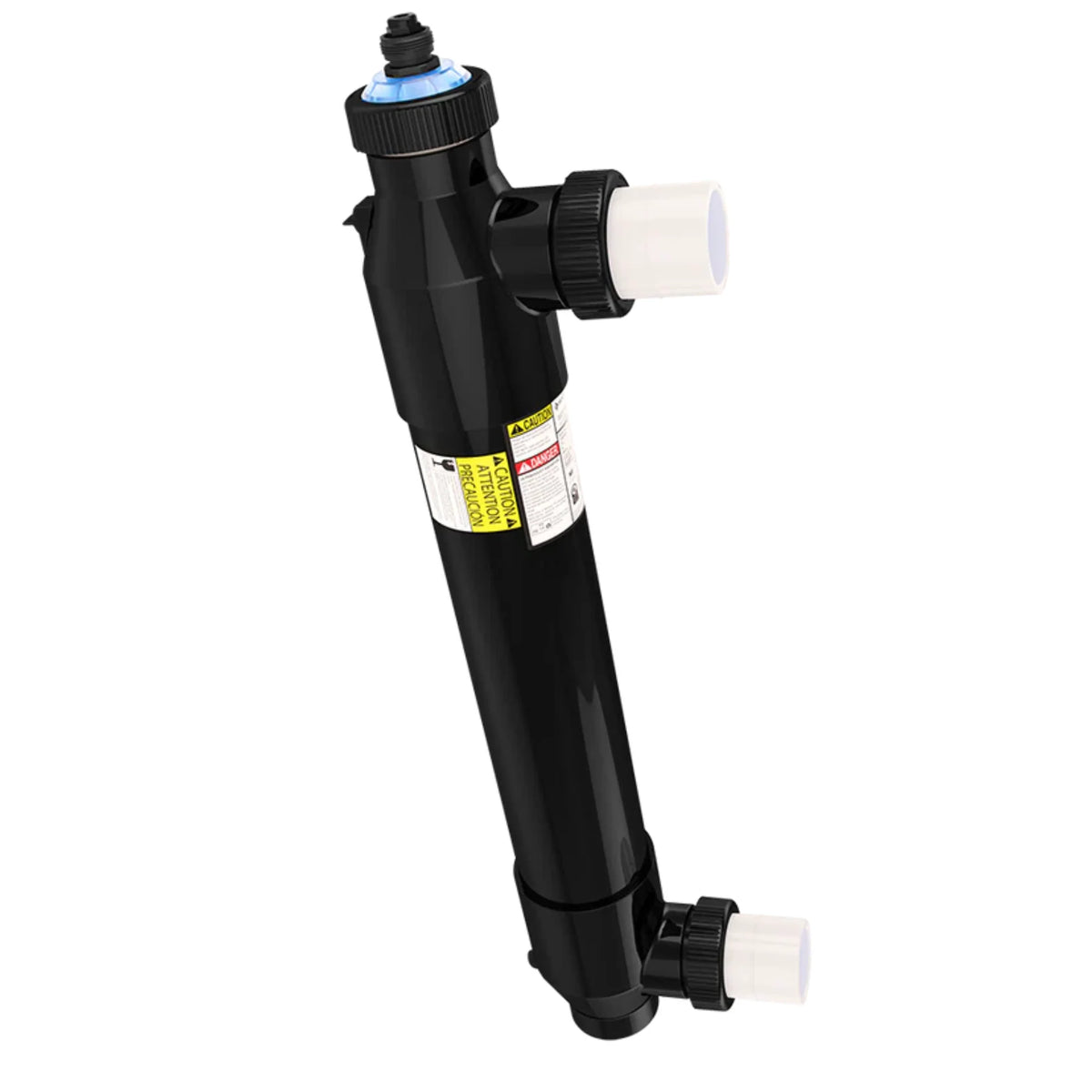

Système UV Pentair BioShield 522636 – 80 W

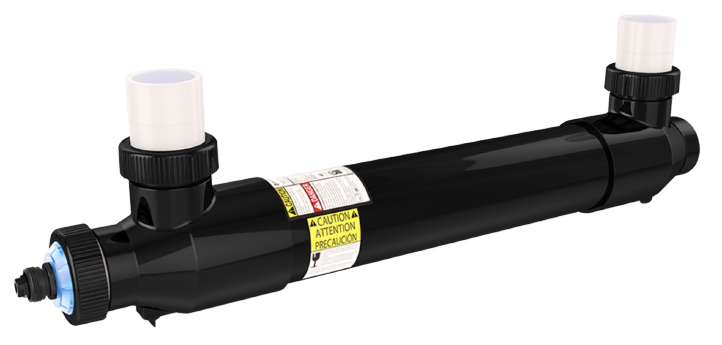

Pentair BioShield UV system 522636 – 80 W

Improve your pool water quality with the Pentair BioShield 522636 UV system , equipped with an 80 W UV lamp and designed to work alongside the pool’s primary treatment system.
  • Range: BioShield UV System
  • Lamp power: 80 W
  • Maximum flow rate: 45 GPM at 30 mJ/cm²
  • Power specified by Pentair: 115/230 V
$599.99 $1,299.99

In the box

What you receive.

  • 1 système UV Pentair BioShield 522636, version 80 W.
  • Installation et accessoires de plomberie à préciser séparément.

Choose with confidence

The product in detail.

Improve your pool water quality with the Pentair BioShield 522636 UV system, equipped with an 80 W UV lamp and designed to work alongside the pool's primary treatment system.

By exposing water to UV light, BioShield helps, among other things, to reduce chloramines, compounds associated with chlorine odors and discomfort that may be felt around some pools. Pentair specifies a reduction in combined chlorine of 25% or 0.25 mg/L, whichever is greater, under the applicable test conditions.

A complement to your pool treatment

The BioShield system integrates into the water circulation circuit to complement the existing treatment.

The Pentair manual specifies a typical installation after the filter and before the primary disinfectant and return to the pool. BioShield is certified as a water-conditioning device and should not be considered a replacement for the primary disinfection system.

80 W model with a maximum flow rate of 45 GPM

Model 522636 is equipped with an 80 W UV lamp. Pentair specifies a maximum flow rate of 45 gallons per minute at a UV dose of 30 mJ/cm².

Key features

  • Brand: Pentair
  • Range: BioShield UV System
  • Part number: 522636
  • Lamp power: 80 W
  • Maximum flow rate: 45 GPM at 30 mJ/cm²
  • Power supply specified by Pentair: 115/230 V
  • Use: Supplemental UV treatment for pools
  • Certified primary function: Chloramine reduction

The flow and power supply specifications are those currently published by Pentair for model 522636.

Helps improve swimming comfort

By helping reduce chloramines, the BioShield can contribute to a more enjoyable swimming experience, particularly by reducing compounds associated with chemical odors, red eyes, and skin discomfort.

Installation in the circulation system

Pentair recommends installing the UV unit after the mechanical filter, so that the water passing through the system contains as few particles as possible that could reduce UV transmission. If the system’s flow rate exceeds the unit’s rated capacity, a bypass circuit is required.

A supplemental UV solution for your pool

The Pentair BioShield 522636 80 W is an appealing option for adding UV treatment to your existing setup and helping control chloramines without replacing the pool’s primary sanitizer.

Available at Piscine Hippocampe.

Your purchase at Piscine Hippocampe

Our team in Delson can advise you based on your equipment model, photos, and part references. Have this information ready to make your selection easier and check which accessories are needed.

Learn more

Useful details.

What is the reference number for this product?
Reference: 522636
What is this product used for?
Use: Complementary UV treatment for pools
What electrical specifications are listed?
Lamp power: 80 W
Power specified by Pentair: 115/230 V
Comment dimensionner le système UV?
Vérifiez le débit et les conditions d’utilisation indiqués pour le modèle. La puissance de la lampe ne suffit pas, à elle seule, à confirmer l’efficacité dans votre circuit.
Quel entretien faut-il prévoir?
Suivez le calendrier du fabricant pour la lampe et l’inspection du manchon en quartz. Les dépôts sur le manchon et l’état de la lampe influencent le fonctionnement.
Quelle précaution prendre lors d’une intervention?
Coupez les alimentations et suivez le manuel avant l’ouverture. Ne regardez pas une lampe UV en fonctionnement hors de son logement; faites réaliser l’entretien conformément aux instructions.
