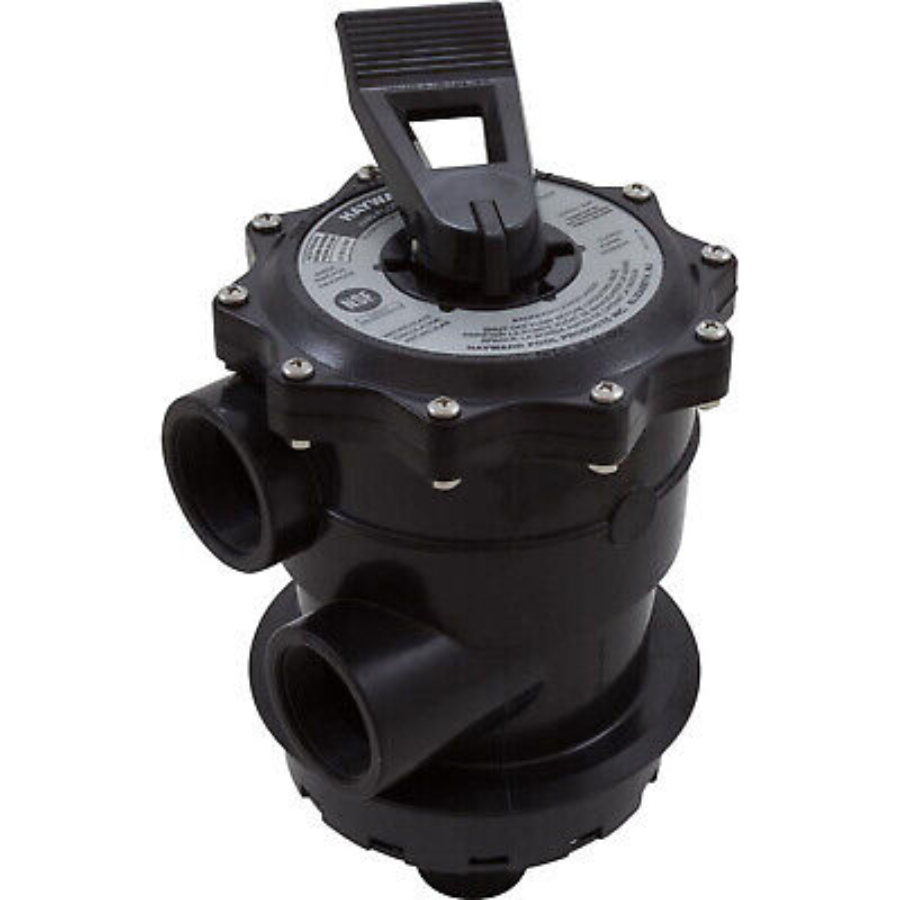

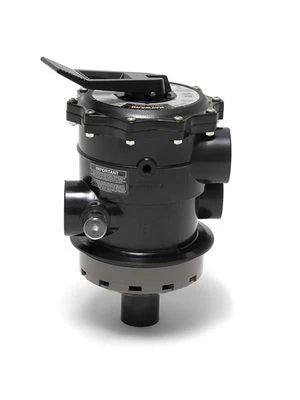

Hayward Vari-Flo SP071621 filter head - 2 in, 6 positions

The Hayward Vari-Flo SP071621 filter head is a six-position multiport valve with 2 in. connections. It mounts on a compatible sand filter to direct filtration, backwashing and circulation functions.

Six functions for the sand filter

• Filter: water flows through the filter media.
• Backwash: cleans the media by reversing the flow.
• Rinse: rinses after backwashing.
• Recirculate: circulates water without filtering it.
• Waste: drains water without passing it through the media.
• Closed: shuts off water flow, with the pump turned off.

SP071621 specifications

• Brand: Hayward.
• Product line: Vari-Flo.
• Part number: SP071621.
• Type: multiport valve for sand filters.
• Mounting: top-mounted on a compatible filter.
• Connections: 2 in. female threaded.
• Number of positions: 6.
• Integrated sight glass to observe the water discharged during backwashing.
• Store SKU: HAYSP071621.

Compatibility with your ProSeries filter

This valve is intended for Hayward ProSeries and ProSeries Plus sand filters whose parts list specifies SP071621. Check the filter model and version, clamp, center pipe and connections before ordering. Having 2 in. connections alone does not guarantee compatibility.

SP071621 and SP071620T: check what's included

Part number SP071621 refers here to the valve sold separately. The GMX600NM clamp, GMX600F O-ring and pressure gauge are sold separately. When comparing it with an SP071620T offer, check what's included in the package and which accessories your filter requires.

Use and installation

Always stop the pump before moving the handle. Turn off the power and fully depressurize the filter according to its manual before disassembly. Install the valve with compatible seals and clamp, then check for leaks when restarting the system.

Do not operate the pump in the Closed position. For winterizing, follow the filter manufacturer's procedure; this listing describes the six operating positions of the SP071621.

Need to confirm the replacement?

Send Piscine Hippocampe the filter model and a photo of the current valve and its connections. Mention SP071621 to compare the part number and the required accessories.

What's in the box

1 Hayward Vari-Flo SP071621 2 in. valve with integrated sight glass. GMX600NM clamp, GMX600F O-ring and pressure gauge sold separately. Filter and pump not included.
