Balboa BP7 + TP500 Spa Control System – 4 kW Heater

The Balboa BP7 kit with TP500 keypad and 4.0 kW heater is designed to replace the control system in spas equipped with one or two pumps. Its rectangular six-button keypad features a backlit LCD screen and simple menus for accessing spa functions.

A control system to upgrade your spa

• System power supply: 220–240 V, 60 Hz only. The control box does not operate on a 120 V power supply.
• 4.0 kW heater with Balboa M7 sensing technology.
• Pump 1: one or two speeds, defaulting to two speeds.
• Pump 2: one or two speeds, or blower, depending on the selected configuration.
• Supports a dedicated circulation pump and an ozonator.
• Spa lighting control.
• Compatible with Balboa ControlMySpa Wi-Fi; module sold separately.
• Compatible with the Balboa Bluetooth audio system; module 59089 sold separately.

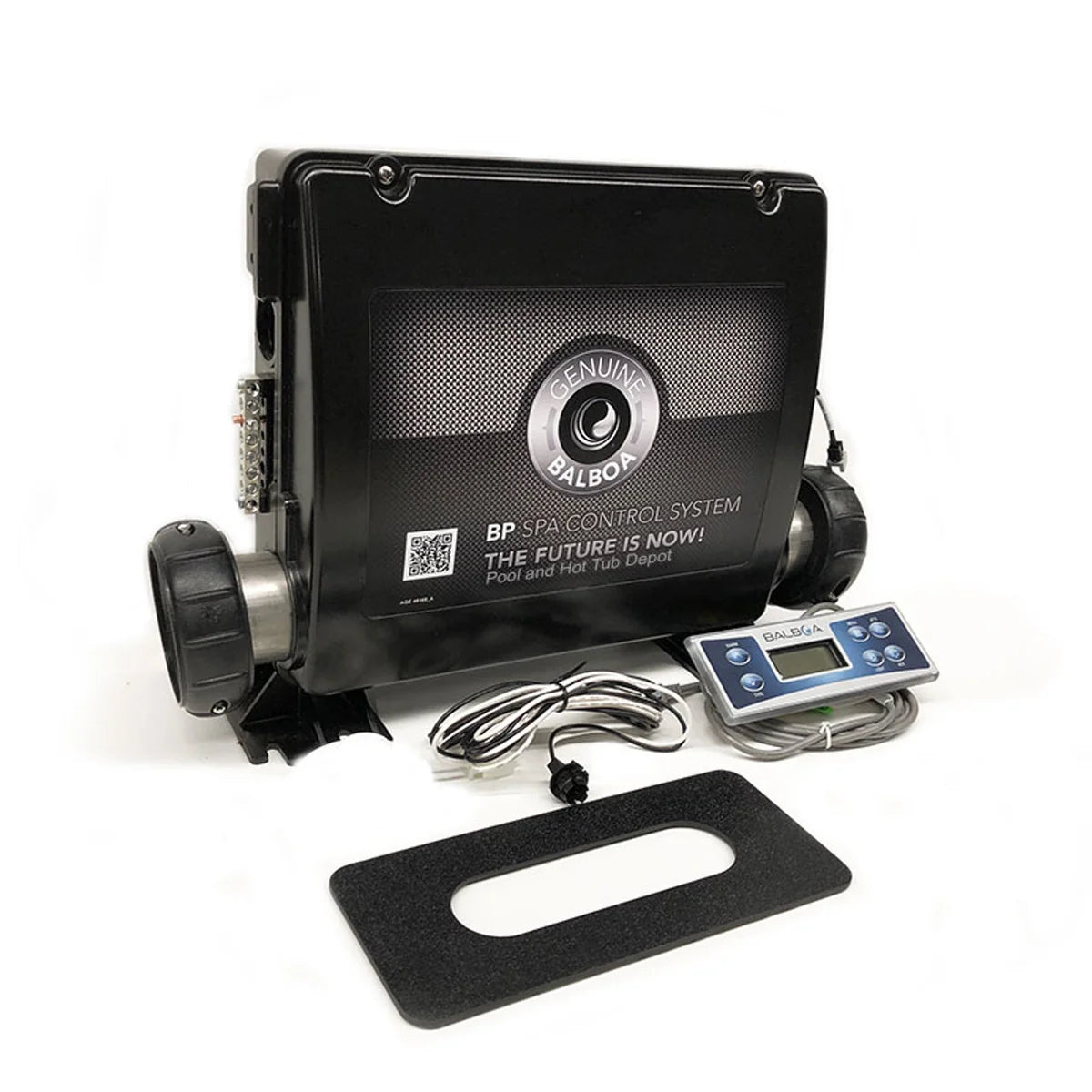

What’s included in the BP7 / TP500 kit

• 1 Balboa BP7 G4361 control box with 4.0 kW heater.
• 1 six-button TP500 G8450 keypad with backlit screen.
• 1 keypad overlay 17183.
• 1 9 × 4 in. adapter plate 15480.
• 1 10 ft. lighting cord 25098.

Pump and accessory cords are not included and are sold separately.

TP500 keypad dimensions

• Faceplate: 6.32 × 2.25 in.
• Required cutout: 5.77 × 1.65 in.
• Adapter plate: 9 × 4 in.

Compatibility and installation

The configuration must match the number of pumps, their number of speeds, and the voltage of each connected piece of equipment. Compatible equipment may be 120 V or 240 V, depending on the outputs and configuration; this does not change the 220–240 V power supply required by the control box.

For the dedicated circulation pump, allow for a minimum flow rate of 23 GPM and plumbing of at least 1 ½ in., in accordance with the requirements provided for this kit. Have a qualified person verify compatibility and perform the installation.

Replaceable components

The BP7 includes a replaceable circuit board, a quick-connect replaceable heater, and two individually replaceable sensors to simplify system maintenance.

References and documentation

• Brand: Balboa.
• Kit: G6405.
• Piscine Hippocampe SKU: CENTG6405.
• Weight: 4 kg.

View the Balboa BP7 programming guide and technical information (PDF, English).
