Flow sensor with MOOV MiniSalt manifold – MCXFLOWM

Flow Detection Assembly for MOOV MiniSalt

The MOOV MCXFLOWM flow sensor with manifold is a replacement part for compatible MiniSalt salt systems. The paddle flow sensor transmits water circulation information to the system, while the manifold provides the mounting point in the hydraulic circuit.

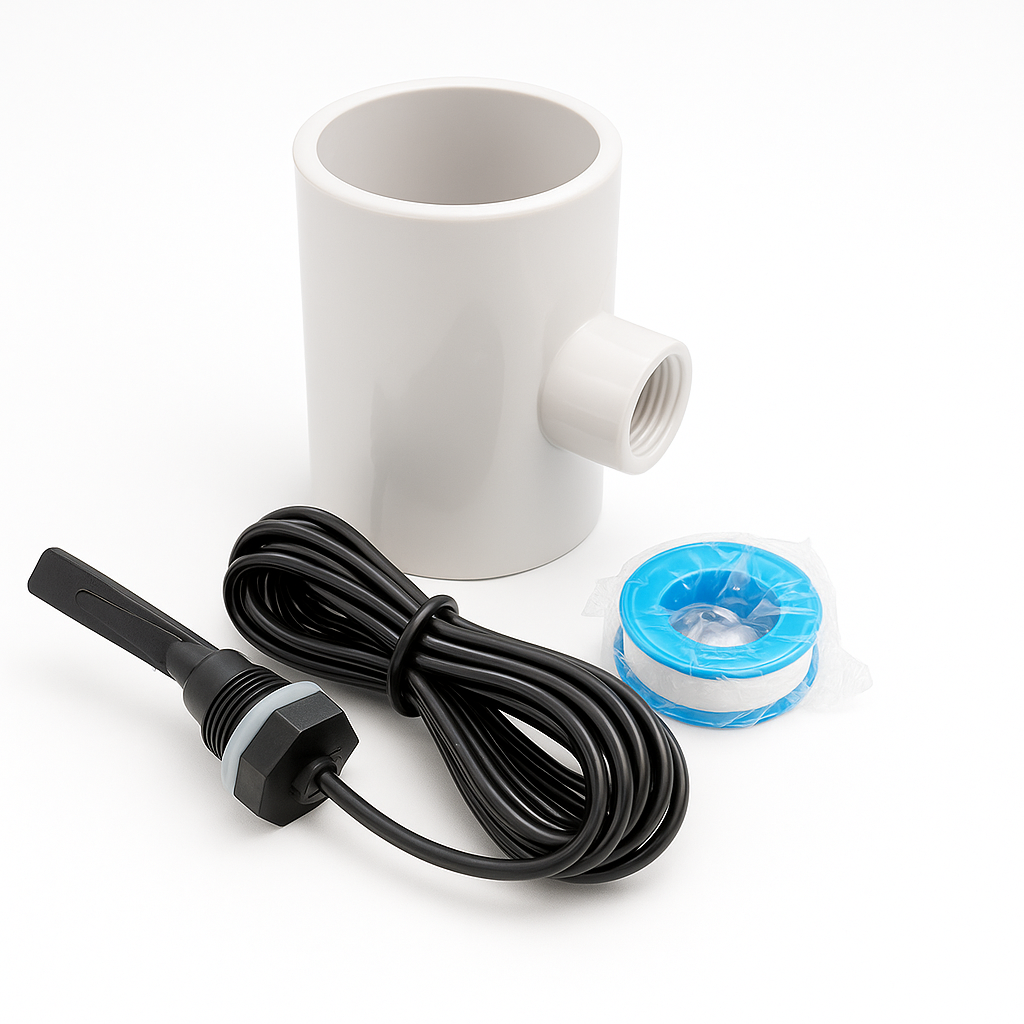

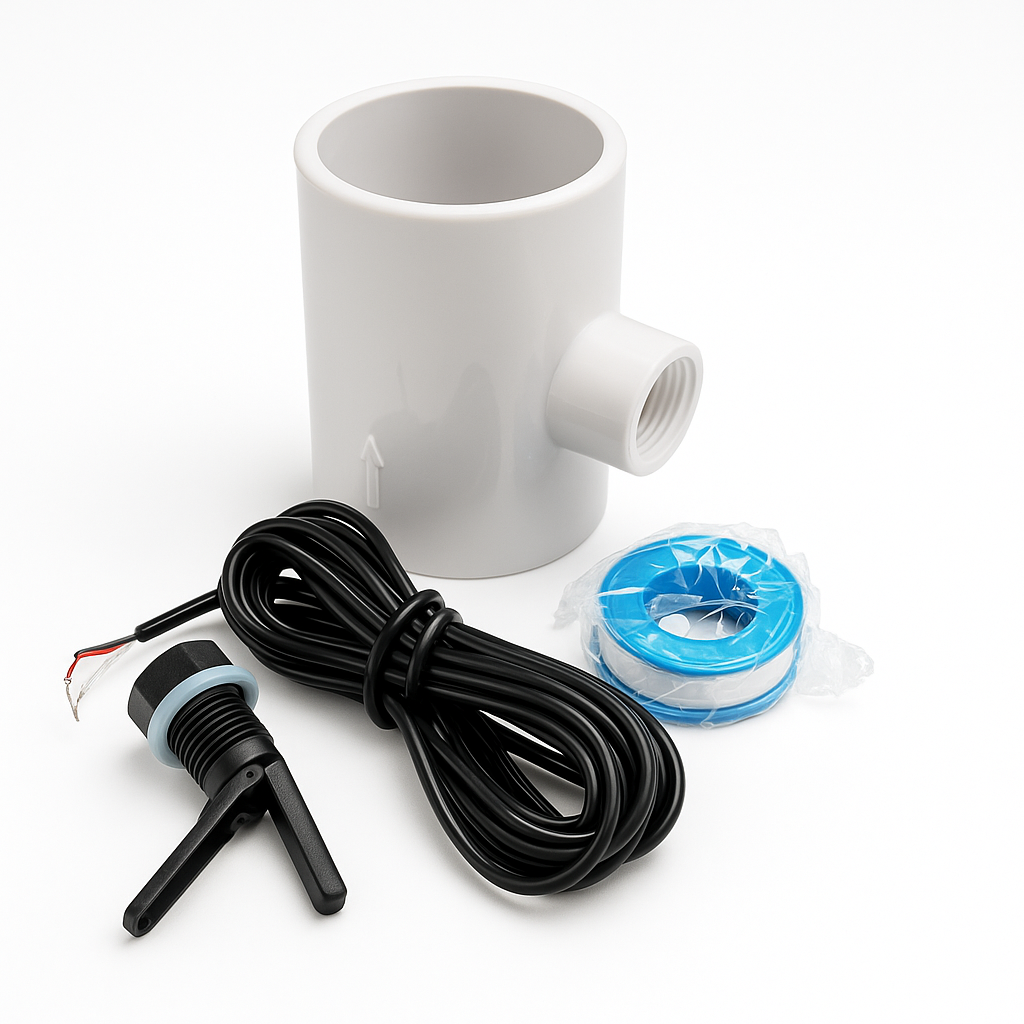

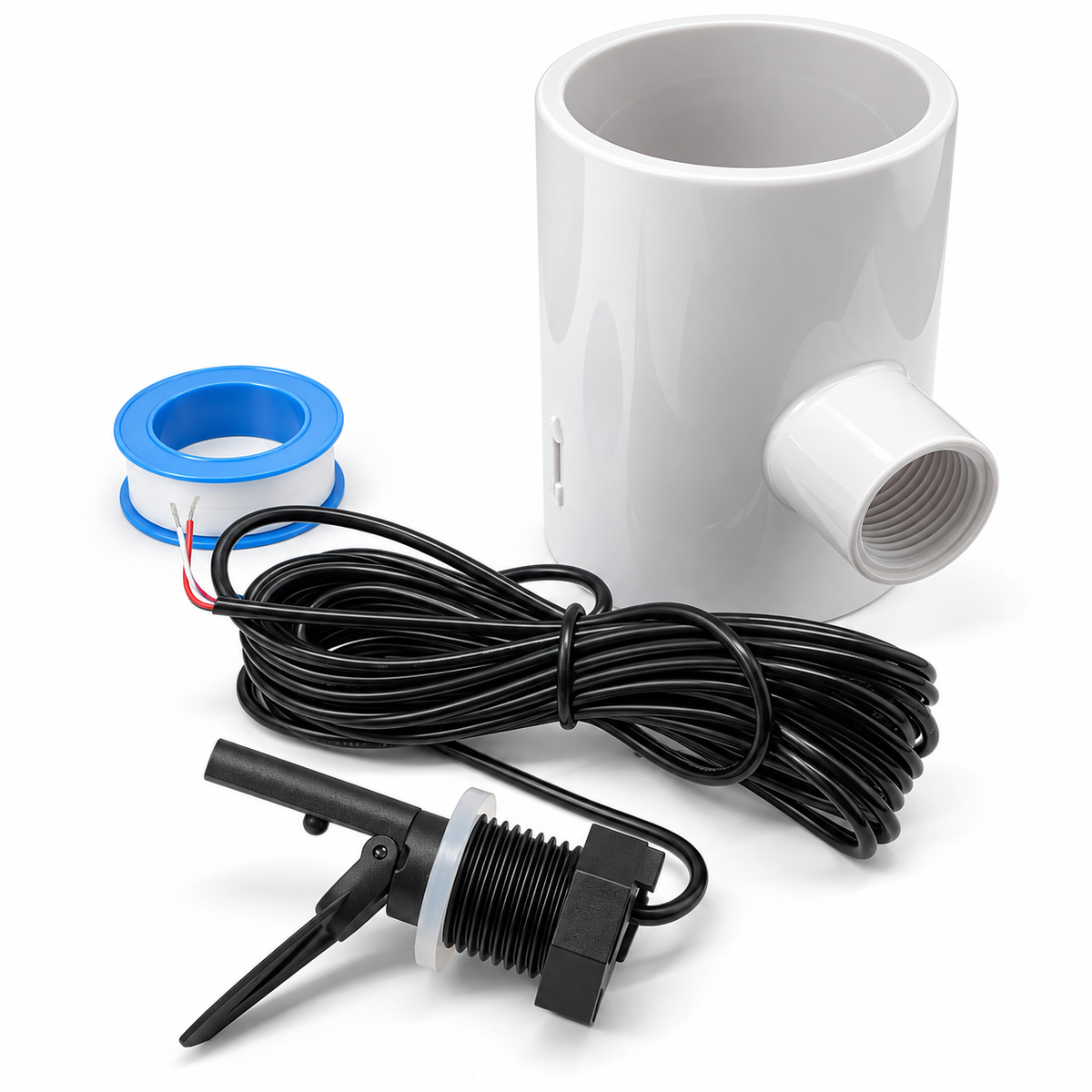

Assembly Contents

• One paddle flow sensor with connection cable
• One white manifold with threaded side port
• One roll of thread seal tape
• Mounting gasket installed on the sensor

Specifications

• Brand: MOOV
• Part number: MCXFLOWM
• SKU: MOOVMCXFLOWM
• Application: Compatible MOOV MiniSalt salt systems
• Function: Water circulation detection

Before Replacing the Sensor

A flow alert may be caused by insufficient circulation, a clogged filter, a closed valve, or a connection problem. Check the hydraulic circuit and have the diagnosis confirmed before replacing the sensor. Replacing it may restore detection when the part is actually defective.

Check Compatibility

Confirm the MCXFLOWM part number in your MiniSalt documentation. Compare the electrical connection and fitting dimensions with your installation before ordering.

Installation and Restart

Turn off the power to the salt system and pump, then release the pressure according to the manual before performing any work. Have the connection carried out by a qualified professional. Observe the flow direction, paddle position, and the manufacturer's sealing and tightening instructions. Check for leaks and verify that the detection system is working when restarting. Do not bypass the flow sensor.

Need help choosing the right MiniSalt part? Contact Piscine Hippocampe in Delson with your system model, the message displayed, and a photo of your installation.
