Chauffe-eau M7 de remplacement avec capteurs intégrés
Balboa G7412 M7 Spa Heater – 4 kW, 240 V
- Power : 4 kW
- Total length : 15" (38 cm)
- Base dimensions : 2"× 2"
- Style : Flow Thru with integrated sensors
Balboa G7412 M7 Spa Heater – 4 kW, 240 V is backordered and will ship as soon as it is back in stock.
Pickup available at Piscine Hippocampe succursale
Usually ready in 24 hours
Balboa G7412 M7 Spa Heater – 4 kW, 240 V is backordered and will ship as soon as it is back in stock.
In the box
What you receive.
Choose with confidence
The product in detail.
The Balboa G7412 spa heater is a 4 kW, 240 V M7 Flow Thru replacement assembly with integrated sensors. Its 15 in. length and 2 in. connections allow it to replace a matching heater while maintaining an installation compatible with the spa control box.
Technical specifications
- Model: Balboa G7412
- Heating power: 4 kW at 240 V
- Technology: M7, Flow Thru assembly with integrated sensors

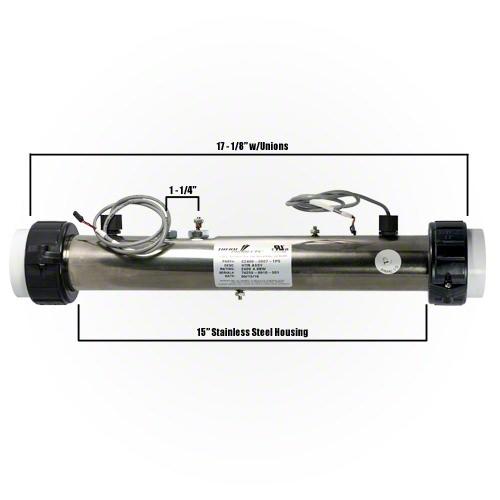

- Body length: 15 in. (38.1 cm), flange to flange
- Connections: 2 in. inlet and outlet
- G7412 model electrical connection: Plug + Click, to be compared with your installation
- References to compare: Balboa 58104, 58303 and G7410; Bullfrog 65-03960
- Piscine Hippocampe SKU: CENTG7412
An assembly for replacing the spa heater
This part combines the heater body, heating element, and sensors. It is suitable for a repair requiring replacement of the heating assembly after diagnosing the problem.
Balboa compatibility and replacement references
References 58104, 58303, G7410, and Bullfrog 65-03960 can help guide your replacement search. For Balboa BP, VS, or EL systems using M7 technology, have the connector, mounting points, and electrical configuration checked. The spa series name or brand alone is not enough to guarantee compatibility.
Dimensions and connections to check
Compare the 15 in. length, 2 in. connections, mounting-point positions, and sensor connections with your current part. The Plug + Click connection must match the control box; an older connection may require an approved adapter.
Installation and maintenance
Have the replacement performed by a qualified spa technician. The voltage, power, and control configuration must match the installed heater. Follow the spa maintenance instructions regarding filtration and water balance.
Offer contents
One Balboa G7412 4 kW heater assembly with integrated sensors. Confirm the unions, gaskets, plumbing ends, and accessories required for your installation before ordering.
Need help choosing the right heater?
Send Piscine Hippocampe a photo of the heater label, the connection, and the control box, along with the spa model and year. Mention G7412 or CENTG7412 to have the replacement checked.
Useful details.
What dimensions are listed?
What electrical specifications are listed?
Voltage : 240 V
Quelles dimensions faut-il comparer?
Peut-il remplacer les références 58104, 58303 ou G7410?
Convient-il à tous les systèmes Balboa BP, VS et EL?
Comment faire confirmer la compatibilité avant d’acheter?
