HeatTrak Heated Stair Mat – 10 × 30, 48 or 60 in.

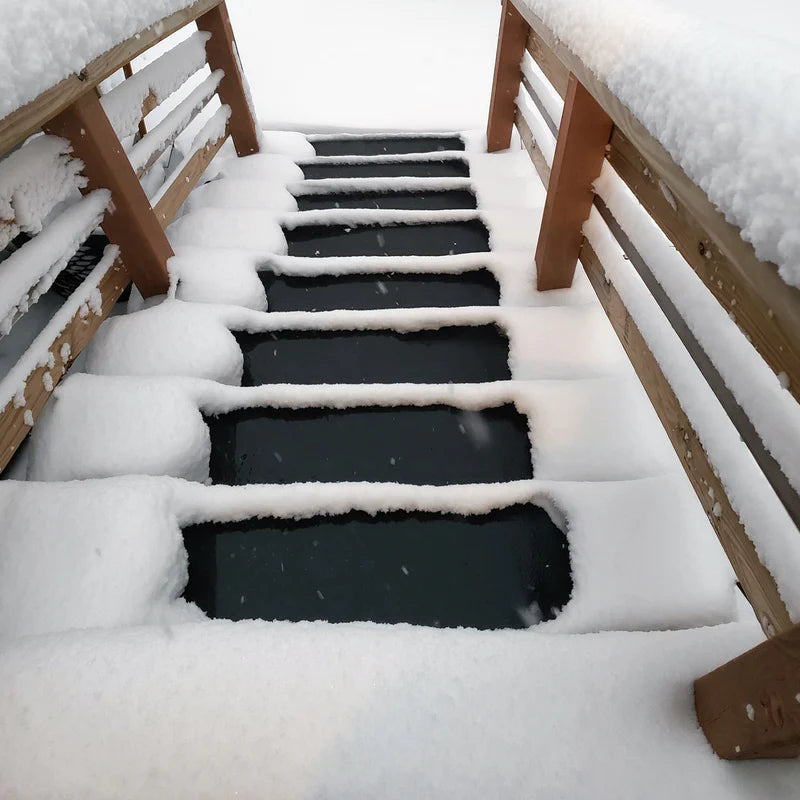

The HeatTrak heated stair mat melts snow and ice on the covered surface of an outdoor staircase. Choose the right length for each step and connect compatible residential mats to create your access path.

Sizes and power consumption

• HR10-30: 10 × 30 in (25.4 × 76.2 cm) — 0.7 A per mat.

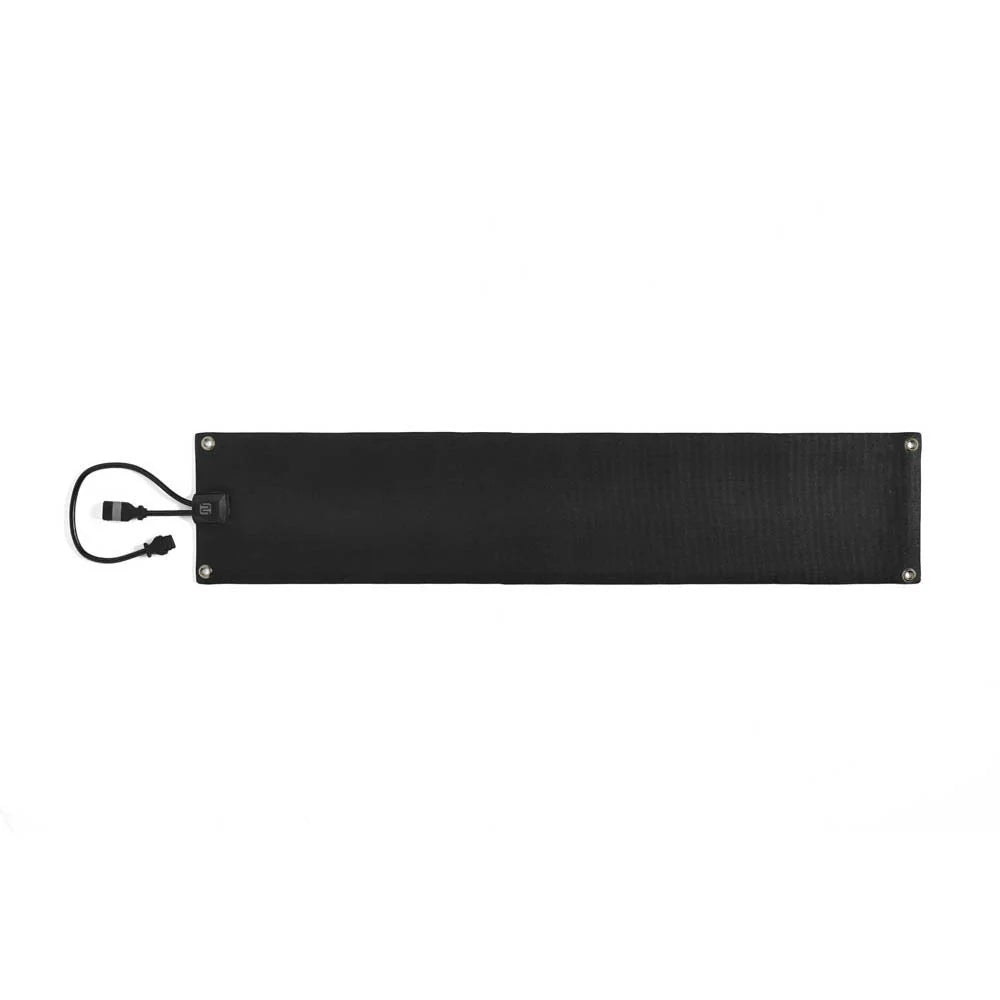

• HR10-48: 10 × 48 in (25.4 × 121.92 cm) — 1.0 A per mat.

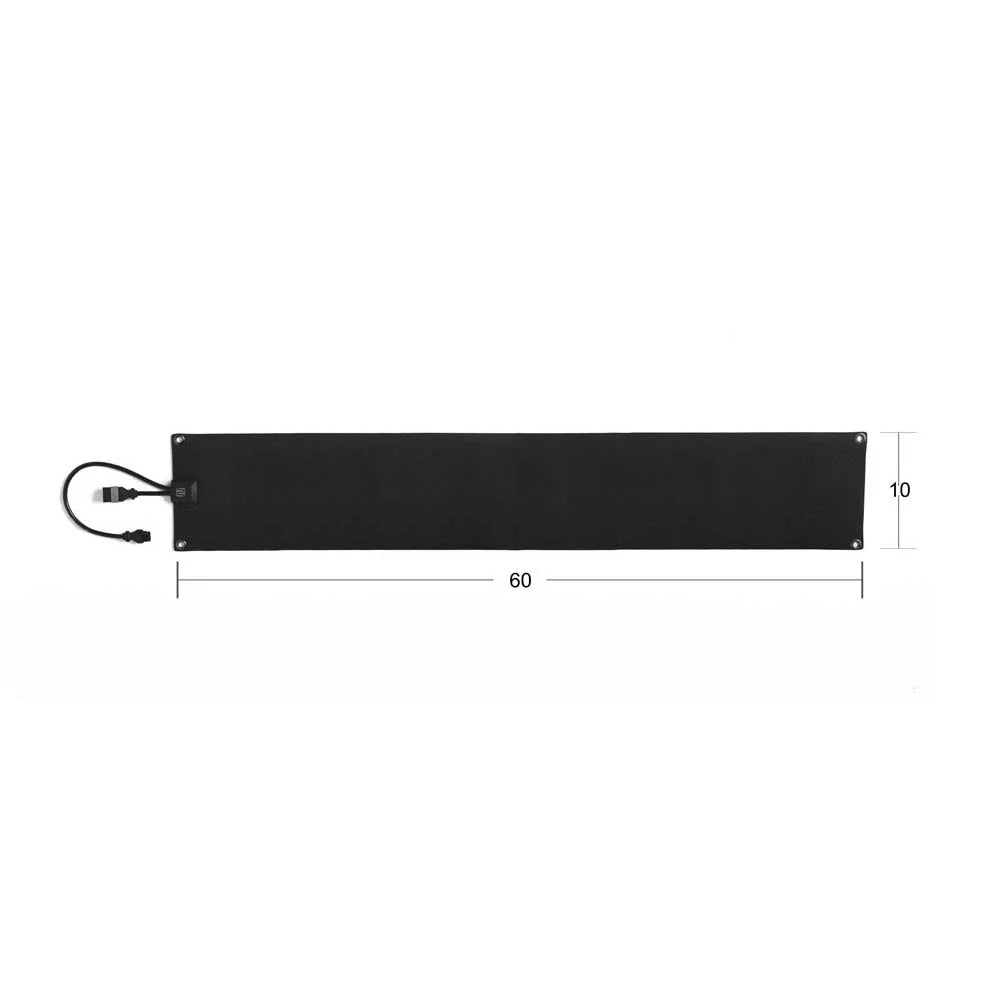

• HR10-60: 10 × 60 in (25.4 × 152.4 cm) — 1.3 A per mat.

Build your heated staircase

Each mat is sold individually. Measure the usable surface and plan how many steps to cover. The mat has a textured surface and four 3/8 in grommets for optional fastening according to the instructions.

Power and connections

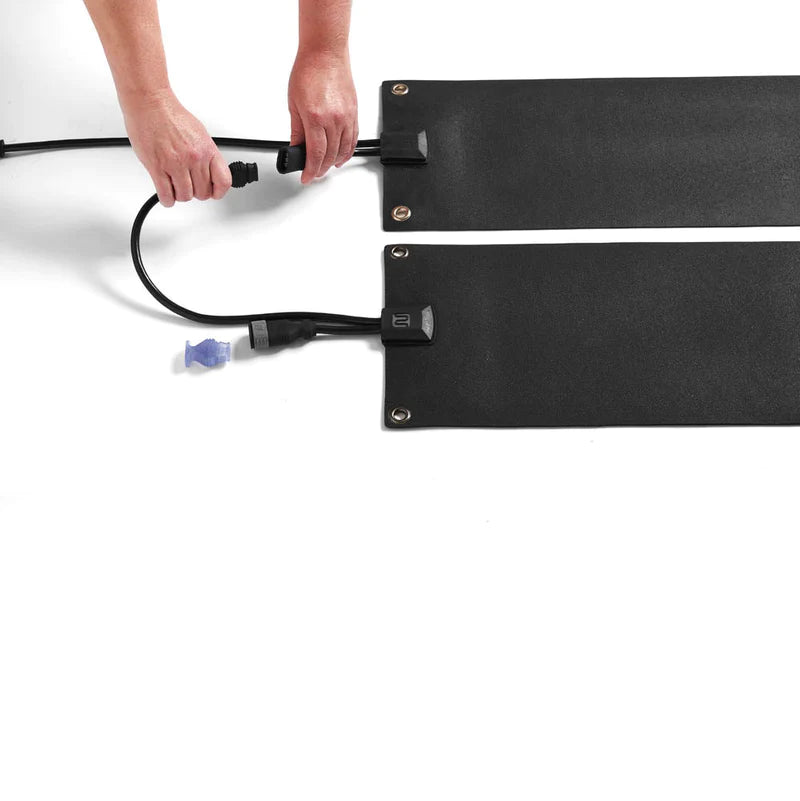

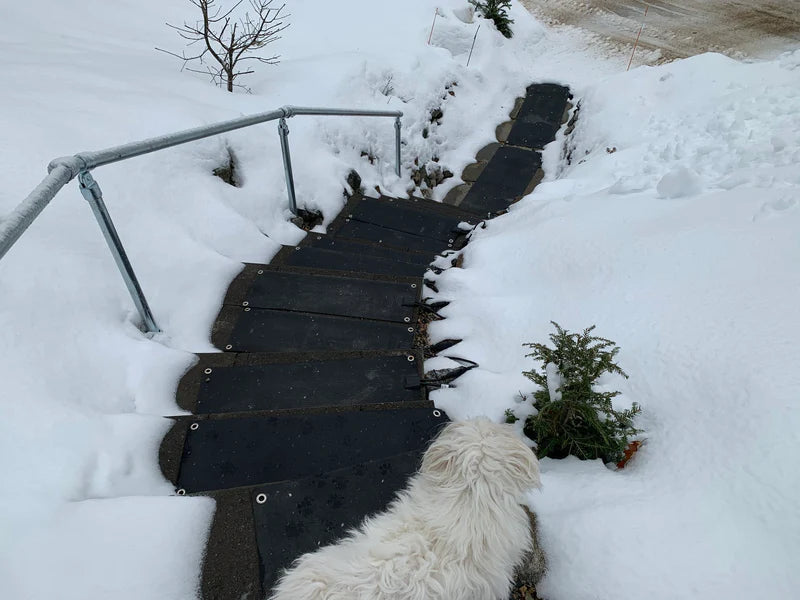

Plan for one HR-P power unit with GFCI protection, sold separately, for the group of mats. The combined load must not exceed 13 A per unit. A 20 in connector is required when connecting a stair mat to a walkway mat, starting from the power unit.

Winter use and care

Use the mat outdoors, flat, and uncovered. Follow the guide and check compatibility with the flooring, especially composite decking. Clean according to the instructions. 2-year manufacturer’s warranty, subject to HeatTrak’s terms.

Complete your installation

• HeatTrak HR-P power unit – GFCI, 120 V, 13 A
• HeatTrak outdoor heated walkway mat – 4 sizes
• HeatTrak waterproof extension cord – 20 in, 10 ft or 25 ft

HeatTrak manufacturer documentation

In the box

• 1 HeatTrak heated stair mat in the selected size.
• HR-P power unit, extension cords, and other mats sold separately.
