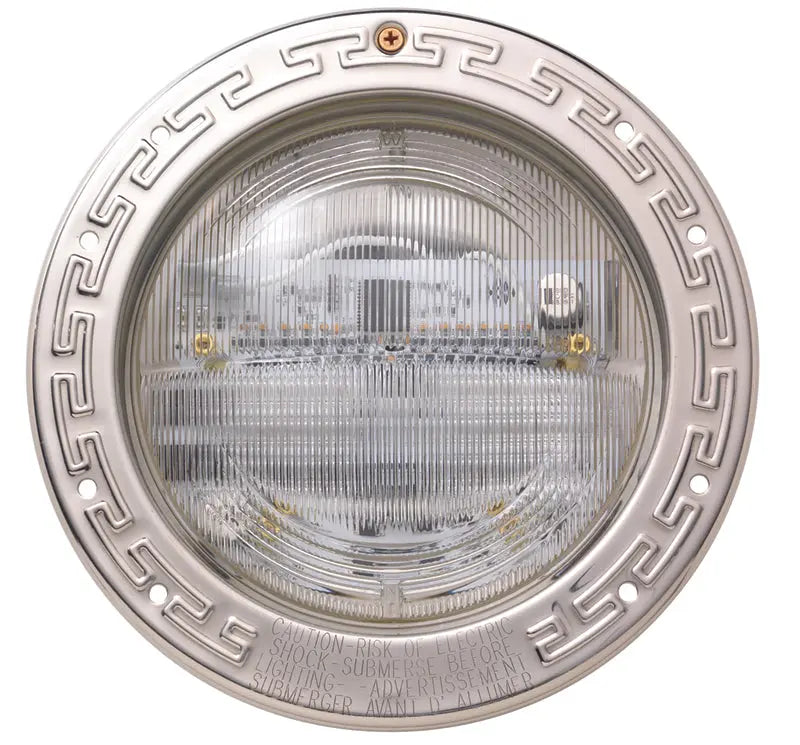

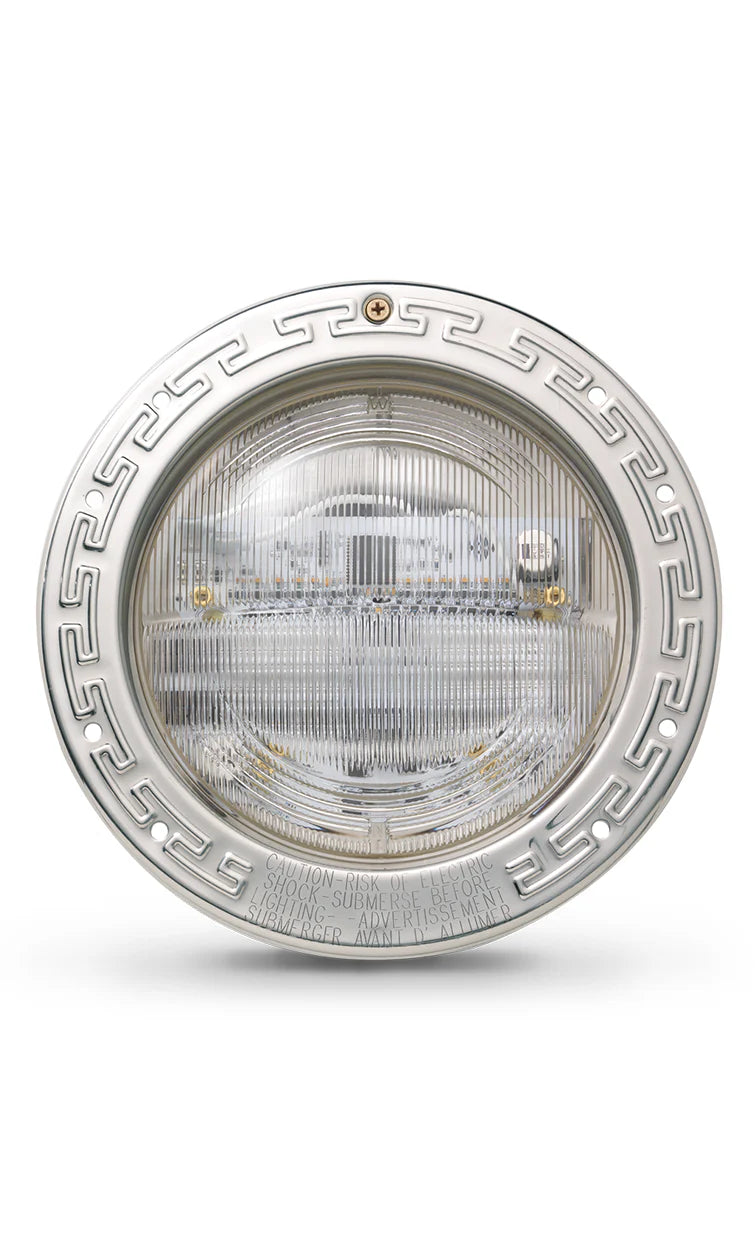

Pentair IntelliBrite 5G Color LED Light for Pool – 12 V, 26 W, 100 ft Cable | 602012

Transform your pool into a spectacular luminous space with the Pentair IntelliBrite 5G 602012 color LED light. Designed for underwater lighting in inground pools, it combines powerful brightness, low energy consumption, and multiple color options to create a personalized atmosphere after sunset.

With its 5 fixed colors, 7 preprogrammed light shows, and 100 ft cable, the IntelliBrite 5G is suitable for both new installations and replacing a compatible Pentair light fixture.

Spectacular color lighting for an inground pool

IntelliBrite LED technology produces rich, uniform colors to highlight the water, steps, and pool edges.

Fixed colors available

• Blue
• Green
• Magenta
• White
• Red

Light shows

• 7 preprogrammed color sequences
• Various light transitions
• Relaxing or dynamic atmospheres
• A suitable choice for evenings and gatherings
• Synchronization possible depending on the control system used

12 V low-voltage light

This version of the IntelliBrite 5G operates on a 12-volt power supply.

Important requirements

• Compatible low-voltage transformer required
• Electrical installation compliant with local standards
• Connection by an electrician or qualified professional recommended
• Do not connect directly to a 120 V power supply
• Check the existing installation's voltage before ordering

The part number 602012 shown here corresponds to the 12 V version indicated in the specifications provided.

Light output and energy efficiency

The IntelliBrite 5G light uses high-efficiency LEDs to provide powerful lighting with a maximum consumption of only 26 W.

Benefits

• 26 W maximum power
• Low energy consumption
• Intense underwater lighting
• Long service life of LED technology
• Reduced consumption compared with several traditional systems
• No frequent bulb replacement

180° rotating lens

The optical design allows the lens orientation to be adjusted according to the desired lighting type.

Adjustment options

• Wide beam for broad light distribution
• Narrower beam for concentrated lighting
• Adaptation to the pool shape
• Better light distribution
• Custom installation based on the light fixture's location

Compatible with Pentair controls

The IntelliBrite 5G can be integrated with several compatible Pentair automation systems.

Compatible systems

• Pentair IntelliTouch
• Pentair EasyTouch
• Pentair controllers compatible with IntelliBrite
• Some earlier-generation IntelliBrite installations

Exact compatibility must be confirmed based on the control panel, voltage, and existing electrical configuration.

100 ft. cable for flexible installation

The preinstalled 100 ft. cable facilitates the connection between the light fixture and the junction box.

Benefits

• Length suitable for multiple configurations
• Greater flexibility during installation
• Suitable for remote junction boxes
• Reduces the need for intermediate connections
• Cable integrated into the light fixture

The cable must not be cut or extended in a manner that does not comply with the manufacturer's guidelines.

Designed for pool environments

The IntelliBrite 5G light is manufactured for permanent underwater use in a proper installation.

Features

• Use in freshwater pools
• Compatible with salinity levels up to 6,000 ppm
• UL listed
• Rugged construction
• Design suited to chlorinated environments
• Installation in a compatible niche required

Niche compatibility

This full-size light is designed for installations using a compatible pool niche.

Check before ordering

• The niche model
• The opening diameter
• The installation voltage
• The required cable length
• The control system used
• The previous light fixture's part number

This light is not a 1.5 in. threaded model and is not suitable for nicheless installations unless otherwise specified by the manufacturer.

Key features

• Color LED light for an in-ground pool
• Pentair brand
• IntelliBrite 5G series
• Part number 602012
• 12 V low-voltage power supply
• 26 W maximum power
• 100 ft. cable
• Full-size
• Approximately 10 in. diameter
• 5 fixed colors
• 7 programmed light shows
• 180° rotating lens
• Compatible with IntelliTouch and EasyTouch
• UL listed
• One-year limited warranty

Technical specifications

Product

Color LED underwater pool light

Brand

Pentair

Series

IntelliBrite 5G

Part number

602012

Voltage

12 V

Maximum power

26 W

Lighting type

Color LED

Fixed colors

5

Light shows

7

Cable length

100 ft

Approximate diameter

10 in

Lens

Rotates 180°

Maximum specified salinity

6,000 ppm

Control compatibility

IntelliTouch and EasyTouch compatible

Warranty

One-year limited warranty

Advantages of the Pentair IntelliBrite 5G

• Powerful and uniform color lighting
• 5 fixed colors
• 7 light shows
• Low 26 W power consumption
• Safe low-voltage operation
• 100 ft cable included
• Adjustable lens
• Compatible with several Pentair controls
• Suitable for saltwater pools up to 6,000 ppm
• Durable LED technology
• Full-size design for a compatible niche
• Recognized Pentair quality

Recommended installation

Installation of an underwater light fixture must be carried out in accordance with applicable electrical codes.

Recommendations

• Disconnect the power supply before installation
• Use a compatible 12 V transformer
• Check the grounding and bonding
• Use an approved junction box
• Install only in a compatible niche
• Never operate the light fixture out of the water
• Have the connection performed by a qualified professional

Package contents

• 1 Pentair IntelliBrite 5G color LED light
• 1 preinstalled 100 ft cable

The transformer, niche, junction box, and control systems are not indicated as included.

Important voltage information

The initial description mentions both 12 V and 120 V. According to the specifications provided, this listing presents the 12 V, 26 W version with a 100 ft cable. Check the part number and product label before installation to confirm the exact voltage.

Create a remarkable atmosphere around your pool

The Pentair IntelliBrite 5G 602012 color LED light offers an ideal combination of light output, energy efficiency, and customization. Its five fixed colors, seven light shows, and compatibility with Pentair controls make it easy to transform your pool into an elegant and welcoming space.

Available now from Piscine Hippocampe.

Your purchase from Piscine Hippocampe

Our Delson team can advise you based on your equipment model, photos, and part references. Have this information ready to make selection easier and verify the necessary accessories.
