AquaLift UltraLift swim spa cover lifter – One end

L’UltraLift AquaLift makes handling a bi-fold swim spa cover easier with its gas strut assistance. This set equips one end of the spa. To equip both ends of the swim spa, order two sets.

One set for one end

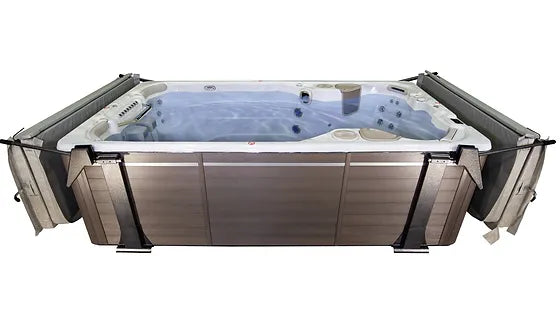

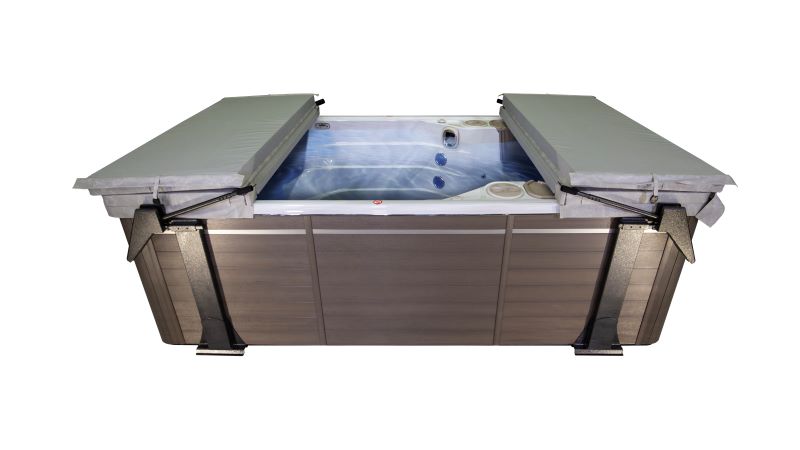

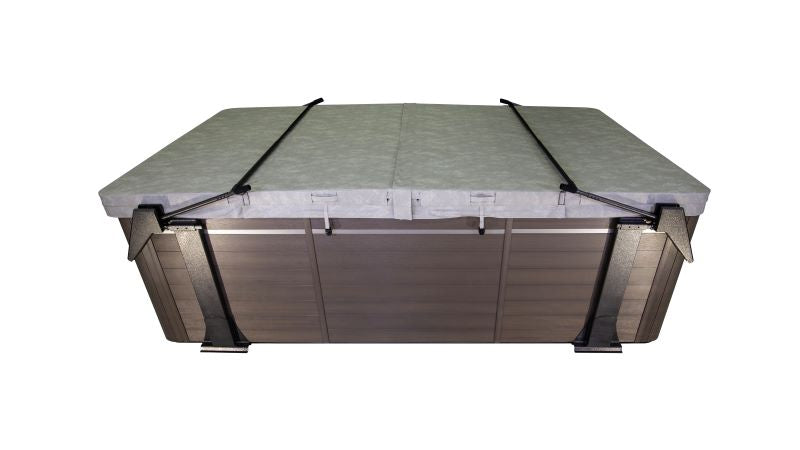

Each unit purchased includes the mechanism for one end of the swim spa. Photos showing both ends equipped illustrate an installation with two sets. The spa and covers are not included.

Dimensions and clearances

• Compatible cover: bi-fold.
• Maximum cover width: 98 in (approximately 248.9 cm).
• Maximum spa height: 54 in (approximately 137.2 cm).
• Required rear clearance: 24 to 28 in (approximately 61 to 71.1 cm).
• Required side clearance: 8.5 in (approximately 21.6 cm).

Support and construction

• Two 220 lb gas struts for one end assembly.
• Heavy-duty aluminum brackets and galvanized steel arms.
• Patented D-shaped center tube for torque control.
• Built-in automatic stop.
• The cover folds completely behind the end of the swim spa.

Prepare for installation

The design avoids drilling into the spa cabinet. Follow the AquaLift manual to install the brackets and mechanism. The guide requires the spa to be completely drained before installation; plan for this step before you begin.

Check compatibility

Measure the cover width, spa height, and rear and side clearances separately. The gas strut ratings describe the mechanism’s assistance and should not be interpreted as the cover’s maximum allowable capacity. Have the installation approved for your model.

Warranty

Manufacturer-advertised limited lifetime warranty, subject to its terms and exclusions.

Documentation

AquaLift installation manual (PDF) · UltraLift manufacturer’s brochure

In the box

• 1 UltraLift AquaLift set for one end of the swim spa, with brackets, arms, and gas struts.
• A second set is required to equip the other end.
• Spa and covers sold separately.
